SELECT A DIAGRAM

02 - Cabinet


03 - Breaker Trim And Liner


04 - Air Flow


05 - Dispenser Front


06 - Solid State


07 - Refrigerator Door


08 - Freezer


09 - Serva-door


10 - Refrigerator Interior , Lit/optional


11 - Unit


12 - Freezer Interior


13 - Ice Maker


14 - Air Flow And Control

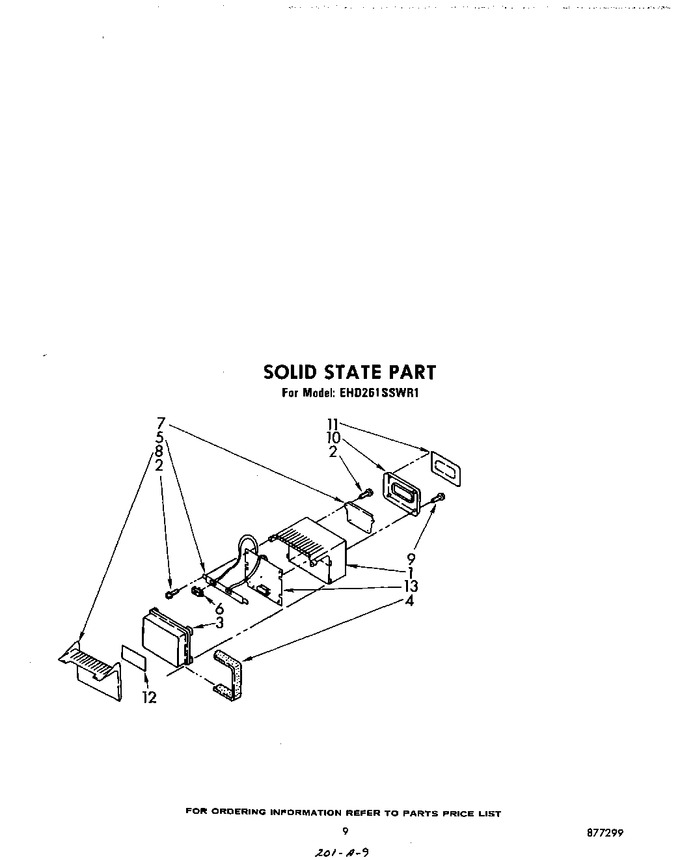

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	939179		Housing		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
3	939192		Insulation, Control Box		Appelez-nous	-
4	939993		Gasket, Control Box Insulation		Appelez-nous	-
5	939186		Switch & Sensor Bracket		Appelez-nous	-
6	939187		Switch		Appelez-nous	-
7	939190		Filter		Appelez-nous	-
8	939202		Cover, Housing		Appelez-nous	-
9	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 489065)			Immediately	$ 14.06
10	939195		Escutcheon		Appelez-nous	-
11	940123		Insert, Escutcheon		Appelez-nous	-
12	940762		Label System, Sentinel Cover		Appelez-nous	-
13	939181		Control Board Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
