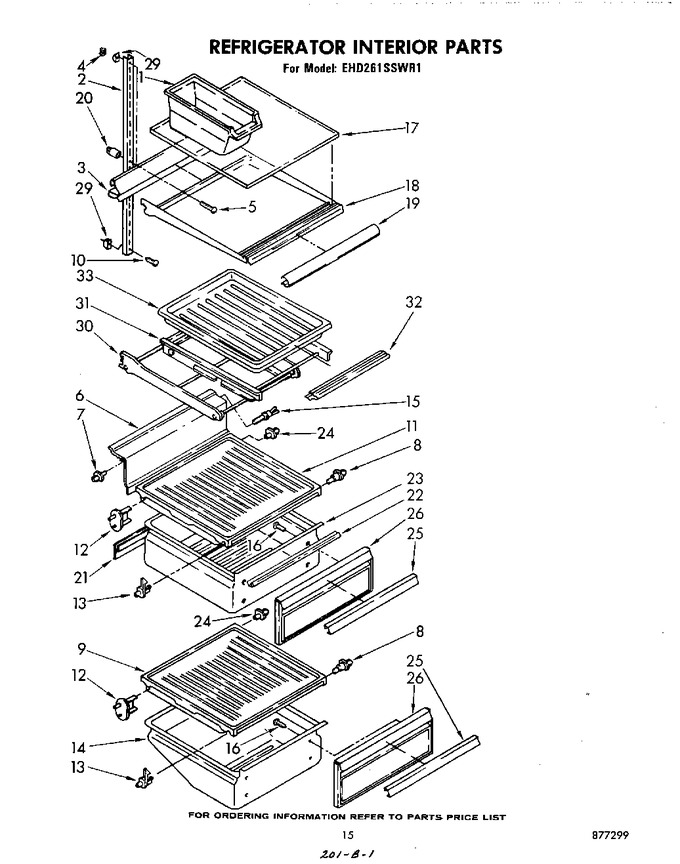

SELECT A DIAGRAM

02 - Cabinet


03 - Breaker Trim And Liner


04 - Air Flow


05 - Dispenser Front


06 - Solid State


07 - Refrigerator Door


08 - Freezer


09 - Serva-door


10 - Refrigerator Interior , Lit/optional


11 - Unit


12 - Freezer Interior


13 - Ice Maker


14 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP982704		Container   (Replaces: 935139)				$ 31.00
2	936653		Ladder, Shelf (2)		Appelez-nous	-
3	849028		Reflector, Shelf		Appelez-nous	-
4	983604		Anchor, Screw (4)		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
6	988364		Cover, Light Lens		Appelez-nous	-
7	937513		Stud (2)		Appelez-nous	-
8	208500		Shelf, Stud (2)		Appelez-nous	-
9	935119		Slide & Cover Meat Pan		Appelez-nous	-
10	488960		Screw, 8-32 X 1-1/4 (2)		Appelez-nous	-
10	488980		Screw (repair)		Appelez-nous	-
11	935120		Slide & Cover, Crisper Pan		Appelez-nous	-
12	937521		Stud, Shelf (2)		Appelez-nous	-
13	984779		Stud, Shelf (2)		Appelez-nous	-
14	840037		Pan (meat)		Appelez-nous	-
15	521878		Stud (2)		Appelez-nous	-
16	488132		Screw (repair)		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488783)			Immediately	$ 7.79
17	985516		Glass, Cantilever Shelf		Appelez-nous	-
18	936787		Shelf, Cantilever (3)		Appelez-nous	-
19	849021		Trim, Shelf		Appelez-nous	-
20	512923		Grommet (2)		Appelez-nous	-
21	982588		Gasket, Rear		Appelez-nous	-
22	982587		Gasket, Front		Appelez-nous	-
23	841316		Pan, Crisper		Appelez-nous	-
24	936591		Stud, Shelf (2)				$ 6.18
25	984750		Overlay		Appelez-nous	-
26	935333		Front, Pan (crisper)		Appelez-nous	-
26	935335		Front, Pan (meats)		Appelez-nous	-
29	520965		Support, Ladder (6)				$ 29.86
30	936793		Frame, Cantilever		Appelez-nous	-
31	985518		Shelf, Roll-out		Appelez-nous	-
32	849021		Trim, Shelf		Appelez-nous	-
33	935417		Bin, Roll-out		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
