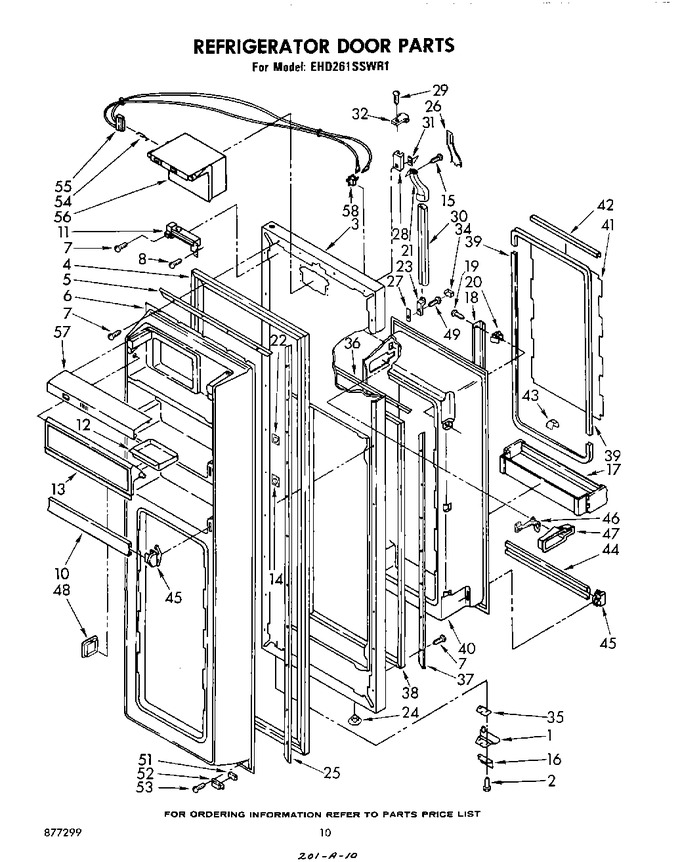

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	987914		Hinge, Bottom (serva-door)		Appelez-nous	-
2	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 7.95
3	941969		Door, Refrigerator (golden Harvest)		Appelez-nous	-
3	941967		Door, Refrigerator (white)		Appelez-nous	-
3	941968		Door, Refrigerator (coffee)		Appelez-nous	-
3	941970		Door, Refrigerator (new Avocado)		Appelez-nous	-
3	941971		Door, Refrigerator (almond)		Appelez-nous	-
4	939341		Gasket, Refrigerator Door		Appelez-nous	-
5	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
6	939173		Panel, Interior		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
7	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 7.85
8	488624		Screw		Appelez-nous	-
10	988746		Trim, Shelf (2)		Appelez-nous	-
11	840847		Door, Closer		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	940084		Door, Compartment		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 7.79
16	988417		Bracket, Door Stop		Appelez-nous	-
17	935450		Shelf, Cantilever (3)		Appelez-nous	-
18	983804		Ladder, Door Shelf (2)		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
20	537095		Clip, Expansion (6)		Appelez-nous	-
21	935103		Center End Cap, Handle		Appelez-nous	-
22	941242		Screw Anchor		Appelez-nous	-
23	935105		End, Cap Handle				$ 32.80
24	534927		Plug, Hole		Appelez-nous	-
25	982887		Retainer, Side (2)		Appelez-nous	-
26	941955		Insert, Handle		Appelez-nous	-
27	935076		Shim, Handle		Appelez-nous	-
28	941954		Retainer Insert		Appelez-nous	-
29	489075		Screw, 6-32 X 1/2		Appelez-nous	-
30	935094		Handle, Center (white, Coffee & Almond)		Appelez-nous	-
30	935096		Handle, Center (golden Harvest)		Appelez-nous	-
30	935095		Handle, Center (new Avocado)		Appelez-nous	-
31	935075		Shim, Handle		Appelez-nous	-
32	941259		End Cap, Insert Retainer		Appelez-nous	-
34	987873		Cover, End Cap		Appelez-nous	-
35	986169		Shim, Bottom Hinge		Appelez-nous	-
36	986164		Reinforcement, Top & Bottom (2)		Appelez-nous	-
37	986163		Reinforcement, Side (2)		Appelez-nous	-
38	935453		Gasket, Seal		Appelez-nous	-
39	986453		Trim, Periphery (2)		Appelez-nous	-
40	939175		Panel, Interior Storage		Appelez-nous	-
41	986455		Panel, Decorative		Appelez-nous	-
42	936954		Trim, Decorative (2)		Appelez-nous	-
43	986454		Cap, Trim Joint (2)		Appelez-nous	-
44	986448		Trim, Door Shelf		Appelez-nous	-
45	982123		Retainer, Trim (6)		Appelez-nous	-
46	935111		Rocker Arm		Appelez-nous	-
47	935109		Housing, Rocker Arm		Appelez-nous	-
48	935112		Escutcheon, Panel Opening		Appelez-nous	-
49	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
51	939206		Magnet		Appelez-nous	-
52	939205		Cover, Magnet		Appelez-nous	-
53	488895		Screw (2)		Appelez-nous	-
54	939958		Key, Lock Plug		Appelez-nous	-
55	939248		Connector, Edge		Appelez-nous	-
57	939984		Escutcheon, Switch & Sensor		Appelez-nous	-
58	877299		List, Parts		Appelez-nous	-
58	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
58	940100		Service & Wiring Sheet		Appelez-nous	-
58	941137		Energy Guide		Appelez-nous	-
58	940763		Label, System Sentinel Int. Door Panel		Appelez-nous	-
58	940760		Guide, Use & Care		Appelez-nous	-
58	939176		Switch		Appelez-nous	-
58	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
58	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
58	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
58	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
58	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
58	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
58	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
58	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
58	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
58	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
58	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
58	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
58	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
58	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
58	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
58	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
58	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
58	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
58	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
58	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
58	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
58	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
58	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
58	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
58	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
58	833938		Kit, Terminal Connector				$ 8.07
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
