Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 935839 Shelf, Solid Appelez-nous -
2 521878 Stud Shelf Appelez-nous -
3 536410 Stud, Shelf Appelez-nous -
4 983667 Ice Container Special Order $ 80.84

5 487979 Screw, 8 X 1 (4) Appelez-nous -
6 982321 Slide, Freezer Bin (2) Appelez-nous -
7 842339 Grommet Appelez-nous -
8 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 488320) In-Stock Immediately $ 7.79

9 989718 Baffle, Ice Container Appelez-nous -
10 836374 Stud, Retainer (2) Appelez-nous -
11 935496 Reflector, Shelf Appelez-nous -
12 982276 Clip, Reflector (2) Appelez-nous -
13 WP488729 Screw, 8-15 X 1/2 (3)   (Replaces: 487109) In-Stock Immediately $ 7.79

14 836492 Stud, Saddle (l.s.) (3) Appelez-nous -
15 988774 Stud, Retainer (2) Appelez-nous -
16 837554 Track, Shelf (r.s.) Appelez-nous -
16 837557 Track, Shelf (l.s.) Appelez-nous -
17 WP488787 Screw, 8-18 X 1/2 (5)   (Replaces: 488886) Special Order $ 10.58

18 986437 Trim, Shelf Appelez-nous -
19 521516 Stud, Door Stop Appelez-nous -
20 935840 Front Assembly, Ice Compartment Appelez-nous -
21 W10749708 Coupling, Ice Conveyor   (Replaces: 983668) Special Order $ 26.13

22 983669 Conveyor, Ice Dispenser Appelez-nous -
23 983671 Drive Bar Appelez-nous -
24 983670 Drum, Ice Dispenser Appelez-nous -
25 983672 Collar, Conveyor Appelez-nous -
26 983673 Bearing, Conveyor Appelez-nous -
27 935842 Cover, Ice Container Appelez-nous -
28 937516 Stud, Saddle (r.s.) (3) Appelez-nous -
29 984293 Shelf, Freezer (3) Appelez-nous -
30 529758 Stud, Shelf (3) Appelez-nous -
31 985542 Trim, Shelf Appelez-nous -
32 935499 Basket, Freezer Appelez-nous -
33 W11693756 Screw, 8-15 X 5/8 (4)   (Replaces: 487042) In-Stock Immediately $ 14.06

34 985546 Trim, Basket Appelez-nous -
35 983677 Overlay, Cover Appelez-nous -
36 991924 Stud, Shelf Appelez-nous -
37 936957 Stud, Shelf (3) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

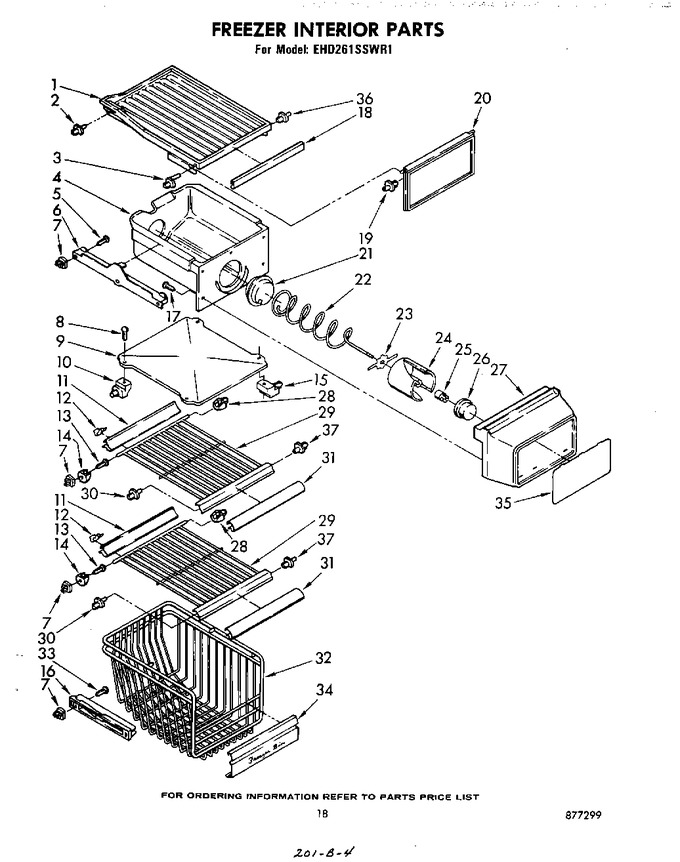

Diagram for EHD261SSWR1
