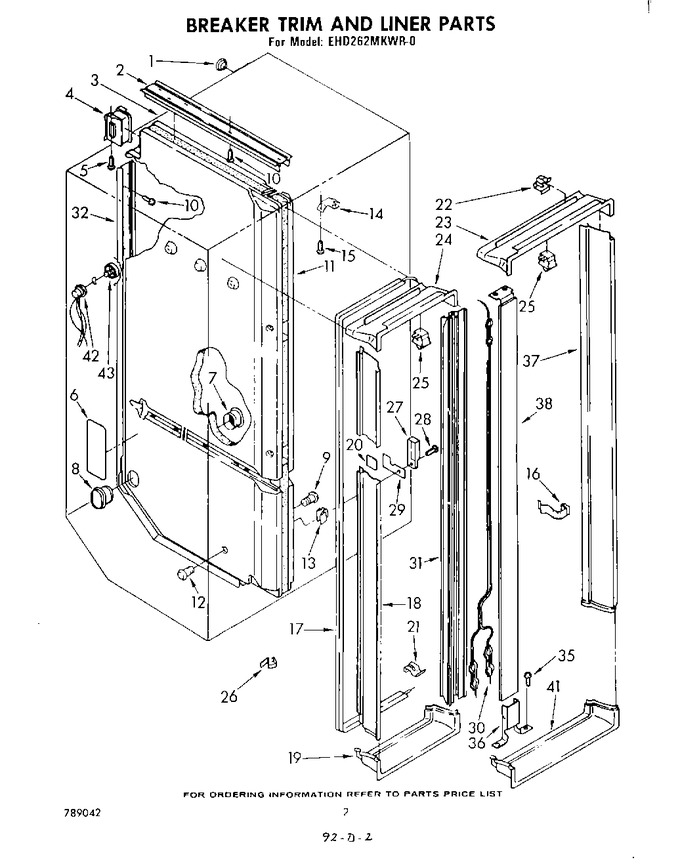

02 - Breaker Trim And Liner


03 - Air Flow And Control , Lit/optional


04 - Freezer Interior


05 - Refrigerator Interior


06 - Unit


07 - Refrigerator Door


08 - Cabinet


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	851020		Grommet, Wiring		Appelez-nous	-
2	988458		Track, Divider (top)		Appelez-nous	-
3	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	848433		Control Connector & Gasket Assembly		Appelez-nous	-
5	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
6	987054		Shield, Divider		Appelez-nous	-
7	982920		Retainer, Insert		Appelez-nous	-
8	982921		Insert, Air Return		Appelez-nous	-
9	843887		Insert, Hole		Appelez-nous	-
10	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
11	941203		Divider, Mullion		Appelez-nous	-
12	843888		Retainer, Insert		Appelez-nous	-
13	537095		Clip, Expansion		Appelez-nous	-
14	935666		Bracket, Divider Retainer (2)		Appelez-nous	-
15	WP681414		Screw, 10 X 1/2   (Replaces: 488908)			Immediately	$ 8.47
16	944696		Clip, Breaker Trim		Appelez-nous	-
17	934475		Heater, Stile		Appelez-nous	-
18	935643		Trim, Breaker L.s.		Appelez-nous	-
19	939829		Trim, Freezer Breaker (bottom)		Appelez-nous	-
20	992358		Pad, Foam		Appelez-nous	-
21	937668		Clip, Breaker Trim (2)		Appelez-nous	-
22	836090		Retainer, Breaker Trim (9)		Appelez-nous	-
23	992041		Trim, Refrigerator Breaker (top)		Appelez-nous	-
24	992046		Trim, Freezer Breaker (top)		Appelez-nous	-
25	W11384469		Switch, Light (2)   (Replaces: 549702)			Immediately	$ 39.09
26	937205		Clip, Heater (6)		Appelez-nous	-
27	985468		Escutcheon, Meat Pan (cold Control)		Appelez-nous	-
28	486214		Screw 8-15 X 1/2		Appelez-nous	-
29	984102		Slide Meat Pan, Cold Control				$ 5.02
30	935620		Heater, Mullion		Appelez-nous	-
31	935613		Breaker, Frame		Appelez-nous	-
32	946147		Track, Divider (back & Bottom)		Appelez-nous	-
35	WP308685		Screw (repair) (4)   (Replaces: 488258)			Immediately	$ 7.87
35	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487900)			Immediately	$ 8.28
36	935619		Bracket, Mullion Rail		Appelez-nous	-
37	935637		Trim, Breaker R.s.		Appelez-nous	-
38	935615		Mullion, Front (coffee)		Appelez-nous	-
38	935618		Mullion, Front (almond)		Appelez-nous	-
38	935617		Mullion, Front (new Avocado)		Appelez-nous	-
38	935614		Mullion, Front (white)		Appelez-nous	-
38	935616		Mullion, Front (golden Harvest)		Appelez-nous	-
41	992044		Trim, Refrigerator Breaker (bottom)		Appelez-nous	-
42	481658		Wiring Assembly Ice Maker		Appelez-nous	-
43	850738		Cap, Receptacle		Appelez-nous	-
