SELECT A DIAGRAM

02 - Breaker Trim And Liner


03 - Air Flow And Control , Lit/optional


04 - Freezer Interior


05 - Refrigerator Interior

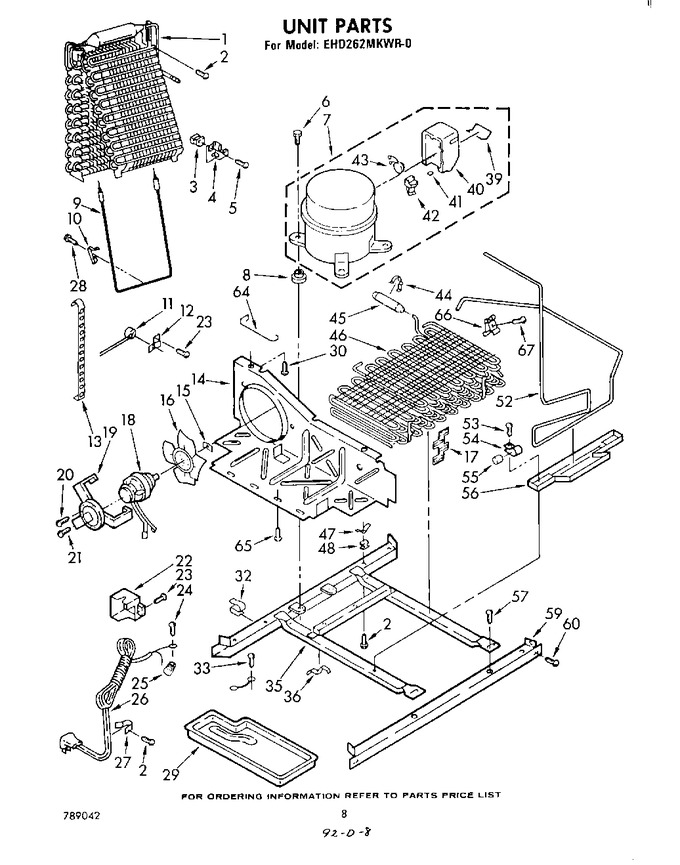

06 - Unit


07 - Refrigerator Door


08 - Cabinet


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	851348		Evaporator		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	944454		Grommet, Screw		Appelez-nous	-
4	842436		Support, Evaporator		Appelez-nous	-
5	WP681414		Screw, 10 - 12 X 1/2   (Replaces: 489049)			Immediately	$ 8.47
6	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
7	876640		Compressor Kit (includes Items 39, 40, 41, 42 & 43)		Appelez-nous	-
8	547283		Grommet (4)		Appelez-nous	-
9	989607		Heater, Defrost		Appelez-nous	-
10	938023		Clamp, Heater		Appelez-nous	-
11	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 989579)				$ 108.99
11	DTS70		Defrost, Bimetal   (Replaces: 989578)			Immediately	$ 11.36
12	850664		Clamp		Appelez-nous	-
13	989200		Shield, Evaporator (4)		Appelez-nous	-
14	851167		Baffle, Air		Appelez-nous	-
15	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
16	989524		Blade, Fan		Appelez-nous	-
17	987210		Spacer, Condenser (3)		Appelez-nous	-
18	833697		Motor, Fan   (Replaces: 946679)			Immediately	$ 109.14
19	548695		Bracket		Appelez-nous	-
20	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
21	488624		Screw, 8 X 3/8 (3)		Appelez-nous	-
22	850482		Box, Junction		Appelez-nous	-
23	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
24	488474		Screw, Ground		Appelez-nous	-
25	227991		Nut, Wire		Appelez-nous	-
26	850626		Cord, Service		Appelez-nous	-
27	549193		Clamp				$ 14.06
28	W11693756		Screw, 8 X 5/8   (Replaces: 487582)			Immediately	$ 14.76
29	982899		Tray, Evaporator		Appelez-nous	-
30	488978		Screw, 8-15 X 3/8		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
35	851125		Frame Assembly		Appelez-nous	-
36	548744		Clip (2)		Appelez-nous	-
39	531318		Spring		Appelez-nous	-
40	549945		Case, Relay		Appelez-nous	-
41	547272		Bumper		Appelez-nous	-
42	938263		Relay		Appelez-nous	-
43	941639		Overload		Appelez-nous	-
44	548508		Clamp		Appelez-nous	-
45	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
46	851123		Condenser & Precooler Assembly		Appelez-nous	-
47	548738		Clamp (4)		Appelez-nous	-
48	548737		Grommet (4)		Appelez-nous	-
52	941628		Exchanger, Heat		Appelez-nous	-
53	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
54	510716		Clamp (2)		Appelez-nous	-
55	510769		Dampener (2)		Appelez-nous	-
56	989269		Pan, Drip		Appelez-nous	-
57	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
59	851177		Rail, Front		Appelez-nous	-
60	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
64	851165		Guard, Fan		Appelez-nous	-
65	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
66	510414		Clip, Tube (4)		Appelez-nous	-
67	978030		Valve, Access (3/4``)				$ 137.25
67	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
67	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
67	978028		Valve, Access (1/2)		Appelez-nous	-
67	978029		Valve Access (5/8``)				$ 93.85
67	WP488787		Screw, 8 X 1/2 (4)   (Replaces: 487981)				$ 11.26
67	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
