02 - Breaker Trim And Liner


03 - Air Flow And Control , Lit/optional


04 - Freezer Interior


05 - Refrigerator Interior


06 - Unit


07 - Refrigerator Door


08 - Cabinet


09 - Freezer Door

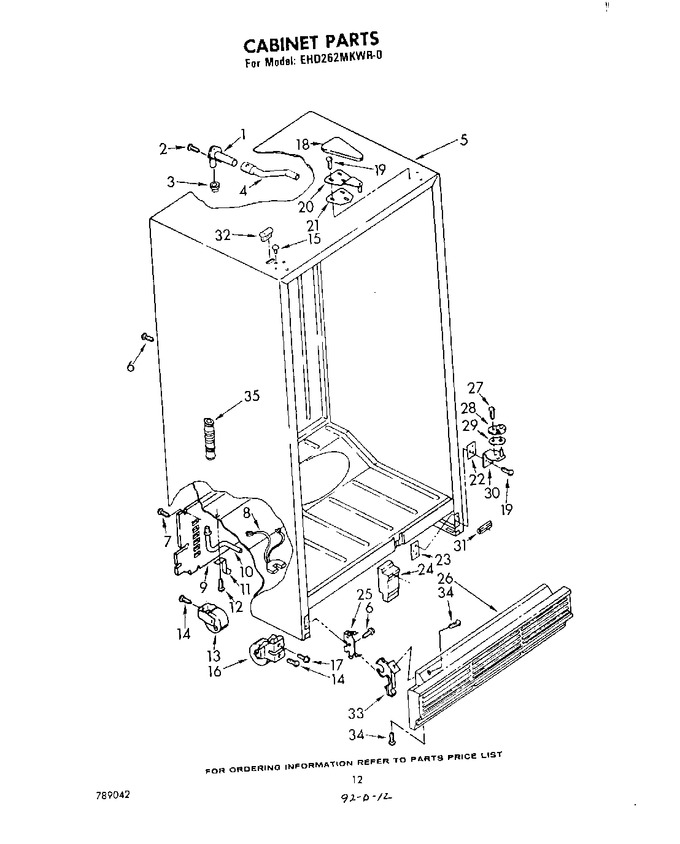

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 12.59
2	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.57
3	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
4	983656		Tube, Water Inlet		Appelez-nous	-
5	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
7	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
8	548734		Wiring, Water Valve		Appelez-nous	-
9	851174		Cover, Compartment		Appelez-nous	-
10	841646		Extension Fitting		Appelez-nous	-
11	841648		Clip, Drain		Appelez-nous	-
12	488978		Screw, 8-15 X 3/8		Appelez-nous	-
13	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
14	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
15	989956		Hole Plug (new Avocado)		Appelez-nous	-
15	989955		Hole Plug (coffee)		Appelez-nous	-
15	989957		Hole, Plug (golden Harvest)		Appelez-nous	-
15	849391		Hole, Plug (white)		Appelez-nous	-
15	989958		Hole Plug (almond)		Appelez-nous	-
16	981127		Roller, Front (2)		Appelez-nous	-
17	488681		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
18	989897		Hinge Cover (new Avocado)		Appelez-nous	-
18	989895		Hinge, Cover (coffee)		Appelez-nous	-
18	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
18	989194		Hinge Cover (almond)		Appelez-nous	-
18	842010		Hinge Cover (white)		Appelez-nous	-
19	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
19	488949		Screw (repair)		Appelez-nous	-
20	842039		Hinge, Top		Appelez-nous	-
21	992854		Shim, Top Hinge		Appelez-nous	-
22	836196		Shim, Hinge (bottom) (repair) (.030)		Appelez-nous	-
23	836162		Plate, Tap (2)		Appelez-nous	-
24	836372		Insert, Baffle		Appelez-nous	-
25	989068		Clip, Grille Retainer		Appelez-nous	-
26	944266		Grille, Exterior (new Avocado)		Appelez-nous	-
26	944267		Grille, Exterior (almond)		Appelez-nous	-
26	944263		Grille, Exterior (white)		Appelez-nous	-
26	944264		Grille, Exterior (coffee)		Appelez-nous	-
26	944265		Grille, Exterior (golden Harvest)		Appelez-nous	-
27	WP486579		Screw, 8-32 X 1/4   (Replaces: 487983)				$ 7.89
27	488913		Screw (repair)		Appelez-nous	-
28	WPW10329686		Door Closer   (Replaces: 986759)			Immediately	$ 5.90
29	987179		Shim, Door Closer		Appelez-nous	-
30	986764		Hinge, Butt L.h.		Appelez-nous	-
30	986763		Hinge, Button R.h.		Appelez-nous	-
31	546131		Bumper (2)		Appelez-nous	-
32	992771		Hole Plug (coffee)		Appelez-nous	-
32	992772		Hole Plug (new Avocado)		Appelez-nous	-
32	992773		Hole Plug (golden Harvest)		Appelez-nous	-
32	992774		Hole Plug (almond)		Appelez-nous	-
32	992770		Hole Plug (white)		Appelez-nous	-
33	WP944224		Grille Support   (Replaces: 944224)				$ 7.94
34	489085		Screw, 8-22 X 5/16		Appelez-nous	-
35	982904		Drain Fitting		Appelez-nous	-
