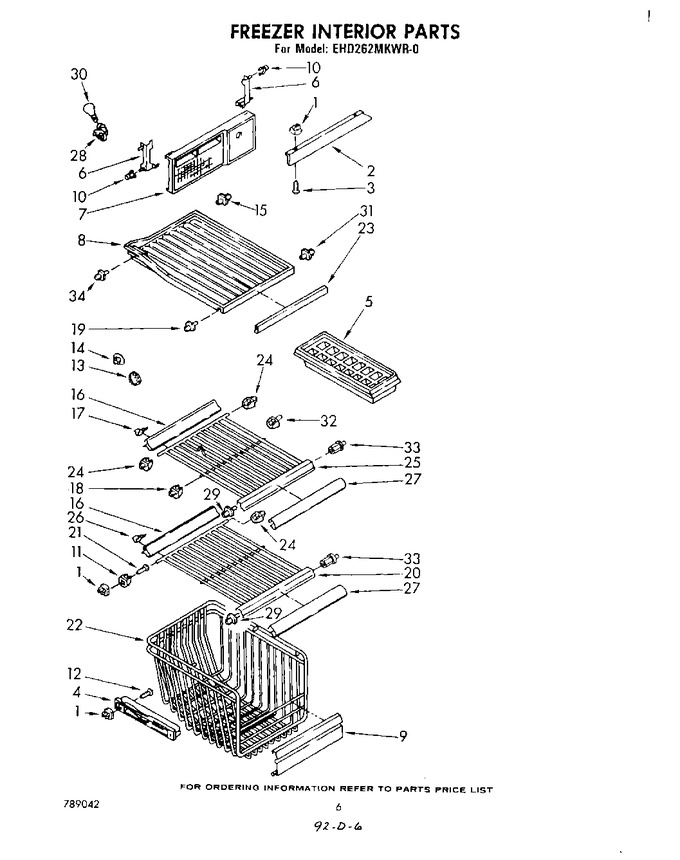

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 842339 Grommet Appelez-nous -
2 SM999 Baffle, Liner Top   (Replaces: 983369) In-Stock Immediately $ 30.26

3 WP489069 Screw   (Replaces: 488772) In-Stock Immediately $ 8.40

4 837557 Track, Shelf (l.s.) Appelez-nous -
4 837554 Track, Shelf (r.s.) Appelez-nous -
5 WP841180A Ice Cube Tray (2)   (Replaces: 841180) In-Stock Immediately $ 47.84

6 842355 Support, Light Lens (r.s.) Appelez-nous -
6 842356 Support, Light Lens (l.s.) Appelez-nous -
7 985539 Lens, Freezer Light Appelez-nous -
8 935492 Shelf, Solid Appelez-nous -
9 985546 Trim, Basket Appelez-nous -
10 843945 Clip, Tubular (4) Appelez-nous -
11 836492 Stud, Saddle (l.s.) (3) Appelez-nous -
12 W11693756 Screw, 8-15 X 5/8   (Replaces: 487042) In-Stock Immediately $ 14.76

13 519890 Plug, Hole (3) Appelez-nous -
14 659598 Plug, Hole (2) Appelez-nous -
15 937513 Stud, Shelf Appelez-nous -
16 935496 Reflector, Cantilever Shelf Appelez-nous -
17 939348 Clip, Reflector Appelez-nous -
18 509108 Stud, Shelf Appelez-nous -
19 536410 Stud, Shelf Appelez-nous -
20 984293 Shelf (3) Appelez-nous -
21 WP488729 Screw, 8-15 X 1/2   (Replaces: 487109) In-Stock Immediately $ 8.28

22 935499 Basket, Freezer Appelez-nous -
23 986437 Trim, Shelf Appelez-nous -
24 937516 Stud, Saddle (r.s.) (4) Appelez-nous -
24 523264 Stud, Saddle L.s. Appelez-nous -
25 935495 Shelf, Ice Pan Appelez-nous -
26 982276 Clip, Reflector (2) Appelez-nous -
27 985542 Trim, Shelf Appelez-nous -
28 4387478 Socket   (Replaces: 851067) In-Stock Immediately $ 115.67

29 529758 Stud, Shelf (4) Appelez-nous -
30 8009 Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

31 991924 Stud, Shelf Appelez-nous -
32 936958 Stud, Shelf Appelez-nous -
33 936957 Stud, Shelf (4) Appelez-nous -
34 521878 Stud Shelf Appelez-nous -
