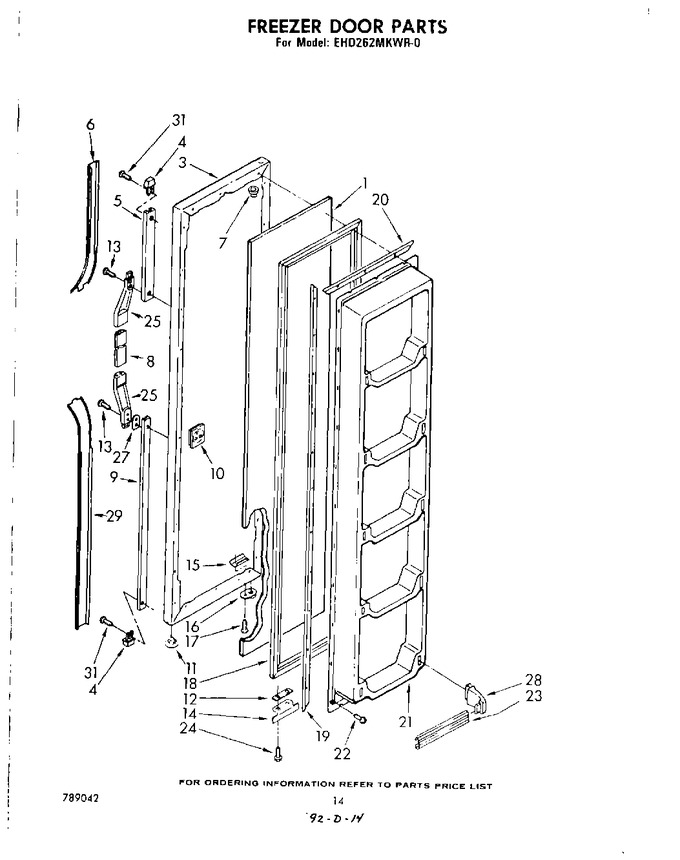

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
3	941904		Door, Freezer (also Order Item 1) (golden Harvest)		Appelez-nous	-
3	941906		Door, Freezer (also Order Item 1) (almond)		Appelez-nous	-
3	941905		Door, Freezer (also Order Item 1) (new Avocado)		Appelez-nous	-
3	941903		Door, Freezer (also Order Item 1) (coffee)		Appelez-nous	-
3	941902		Door, Freezer (also Order Item 1) (white)		Appelez-nous	-
4	941259		Cap, Handle (2)		Appelez-nous	-
5	941297		Retainer Insert (top)		Appelez-nous	-
6	941298		Insert, Handle Top		Appelez-nous	-
7	509929		Cap, Hinge (2)		Appelez-nous	-
8	935091		Handle, Center (white, Coffee, & Almond)		Appelez-nous	-
8	935092		Handle, Center (new Avocado)		Appelez-nous	-
8	935093		Handle, Center (golden Harvest)		Appelez-nous	-
9	941262		Retainer Insert (bottom)		Appelez-nous	-
10	941242		Screw Anchor		Appelez-nous	-
11	534927		Plug, Hole		Appelez-nous	-
12	988421		Shim, Bracket		Appelez-nous	-
13	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
14	988420		Bracket, Door Stop		Appelez-nous	-
15	988402		Plate, Tap		Appelez-nous	-
16	4318165		Closer, Door Cam   (Replaces: 986758)			Immediately	$ 29.74
17	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
18	944470		Gasket, Freezer Door		Appelez-nous	-
19	982887		Retainer, Side Gasket (2)		Appelez-nous	-
20	983643		Retainer, Top & Bottom Gasket (2)		Appelez-nous	-
21	945848		Panel, Interior		Appelez-nous	-
22	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
22	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
23	935819		Trim, Door Shelf (5)		Appelez-nous	-
24	488549		Screw, 8 X 5/8		Appelez-nous	-
25	935103		End Cap, Handle (2)		Appelez-nous	-
27	935075		Shim, End Cap (2)		Appelez-nous	-
28	WP849996		Support, Trim (10)   (Replaces: 943824)				$ 7.95
29	941263		Insert, Handle Bottom		Appelez-nous	-
31	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
