SELECT A DIAGRAM

02 - Breaker Trim And Liner


03 - Air Flow And Control , Lit/optional


04 - Freezer Interior

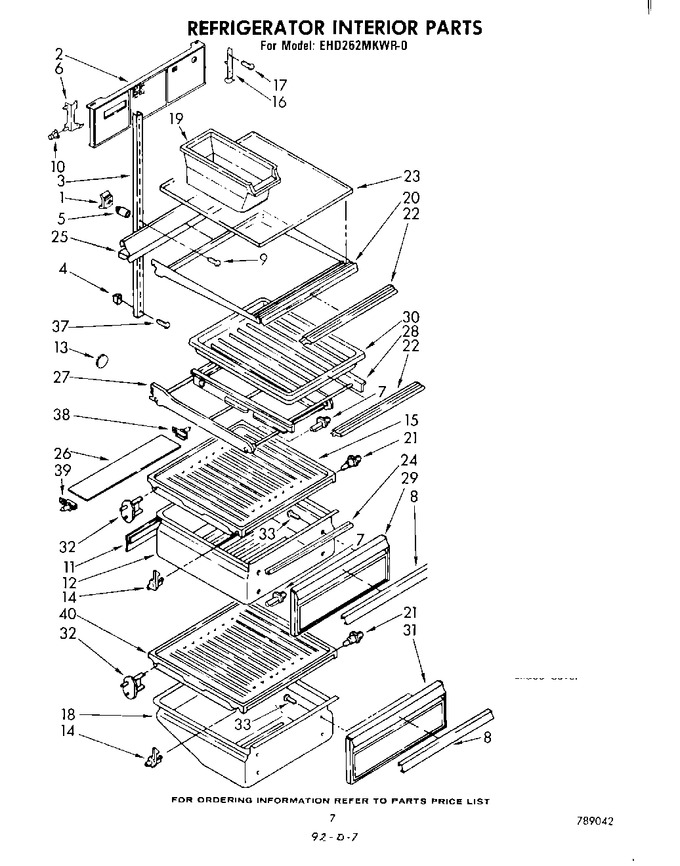

05 - Refrigerator Interior


06 - Unit


07 - Refrigerator Door


08 - Cabinet


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	983604		Anchor, Screw (4)		Appelez-nous	-
2	943218		Lens, Refrigerator Light		Appelez-nous	-
3	936653		Ladder (2)		Appelez-nous	-
4	520965		Support, Ladder (6)				$ 31.35
5	512923		Grommet (2)		Appelez-nous	-
6	842356		Support, Light Lens (l.s.)		Appelez-nous	-
7	936591		Stud (2)				$ 6.18
8	984750		Overlay, Pan		Appelez-nous	-
9	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
10	843945		Clip, Tubular (2)		Appelez-nous	-
11	982588		Gasket, Crisper (rear)		Appelez-nous	-
12	841316		Pan, Crisper		Appelez-nous	-
13	519890		Plug, Hole (2)		Appelez-nous	-
14	984779		Stud, Shelf (2)		Appelez-nous	-
15	935120		Slide & Cover Oil Pan (2) (light Smoke)		Appelez-nous	-
16	984552		Support, Light Lens (r.s.)		Appelez-nous	-
17	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
18	840037		Pan (meat)		Appelez-nous	-
19	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
20	936787		Shelf, Cantilever (3)		Appelez-nous	-
21	208500		Stud, Shelf (2)		Appelez-nous	-
22	849021		Trim, Shelf Front		Appelez-nous	-
23	985516		Glass, Cantilever Shelf		Appelez-nous	-
24	982587		Gasket, Crisper (front)		Appelez-nous	-
25	849028		Reflector, Cantilever Shelf		Appelez-nous	-
26	935898		Light Lens, Crisper		Appelez-nous	-
27	936793		Frame, Cantilever Shelf		Appelez-nous	-
28	985518		Shelf, Roll-out		Appelez-nous	-
29	935333		Cover, Crisper Pan		Appelez-nous	-
30	935417		Bin, Roll-out Shelf		Appelez-nous	-
31	935335		Cover, Meat Pan		Appelez-nous	-
32	937521		Stud, Shelf (2)		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
33	488132		Screw (repair)		Appelez-nous	-
37	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
37	488980		Screw (repair)		Appelez-nous	-
38	935243		Stud, Light Lens		Appelez-nous	-
39	935982		Stud, Light Lens		Appelez-nous	-
40	935119		Slided Cover Meat Pan (frost Ivory)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
