SELECT A DIAGRAM

02 - Breaker Trim And Liner

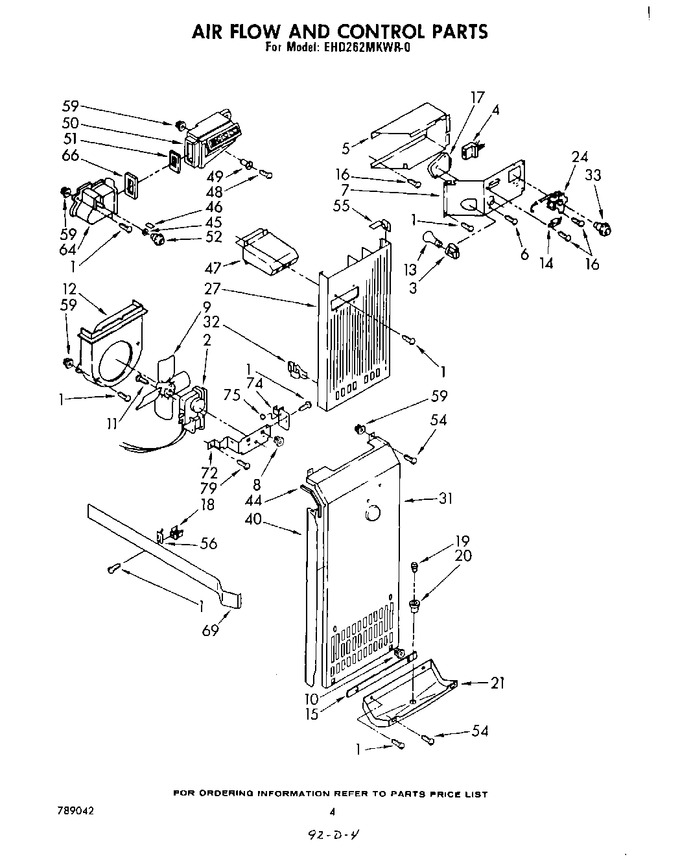

03 - Air Flow And Control , Lit/optional


04 - Freezer Interior


05 - Refrigerator Interior


06 - Unit


07 - Refrigerator Door


08 - Cabinet


09 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
2	SM999		Motor, Fan   (Replaces: 938223)			Immediately	$ 30.26
3	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
4	481782		Wiring Assembly (defrost Timer)		Appelez-nous	-
5	984550		Box, Control		Appelez-nous	-
6	WP3388228		Screw, 6-20 X 3/8 (2)   (Replaces: 488911)				$ 7.30
7	934045		Front, Control Box		Appelez-nous	-
8	538449		Grommet (2)		Appelez-nous	-
9	839859		Blade, Fan		Appelez-nous	-
10	848445		Grommet (2)		Appelez-nous	-
11	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
12	983650		Scroll Fan		Appelez-nous	-
13	8009		Bulb   (Replaces: 527949)			Immediately	$ 18.67
14	938049		Bracket, Switch		Appelez-nous	-
15	934130		Gasket, Drain Pan		Appelez-nous	-
16	488624		Screw, 8-32 X 3/8		Appelez-nous	-
17	W10822278		Timer, Defrost   (Replaces: 943435)			Immediately	$ 34.44
18	537095		Clip, Expansion (2)		Appelez-nous	-
19	842259		Cap, Drain		Appelez-nous	-
20	836088		Fitting, Drain		Appelez-nous	-
21	934121		Pan, Drain		Appelez-nous	-
24	GC506		Thermostat & Barrier   (Replaces: 989566)				$ 50.44
27	983651		Duct, Air		Appelez-nous	-
31	939729		Cover, Evaporator		Appelez-nous	-
32	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
33	836482		Knob, Thermostat		Appelez-nous	-
40	983649		Gasket (2)		Appelez-nous	-
44	987178		Gasket, Cover Top (2)		Appelez-nous	-
45	938439		Retainer, Damper		Appelez-nous	-
46	837444		Knob, Retainer		Appelez-nous	-
47	983652		Deflector, Air		Appelez-nous	-
48	488357		Screw, 8 X 1-1/4		Appelez-nous	-
49	836667		Spacer		Appelez-nous	-
50	991158		Air Diffuser		Appelez-nous	-
51	842394		Gasket, Air Diffuser		Appelez-nous	-
52	837445		Knob, Temperature Control (includes Illus. 46)		Appelez-nous	-
54	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
55	987954		Baffle, Air		Appelez-nous	-
56	983605		Clip, Heat Exchanger (2)		Appelez-nous	-
59	842339		Grommet		Appelez-nous	-
64	841269		Scoop, Air		Appelez-nous	-
66	844871		Gasket Scoop		Appelez-nous	-
69	935634		Cover, Exchanger		Appelez-nous	-
72	938224		Bracket (single)		Appelez-nous	-
74	548263		Bracket (double)		Appelez-nous	-
75	548268		Grommet (3)		Appelez-nous	-
79	789042		List, Parts		Appelez-nous	-
79	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
79	946951		Energy Guide		Appelez-nous	-
79	935432		Guide, Use & Care		Appelez-nous	-
79	WP489069		Screw   (Replaces: 488772)			Immediately	$ 8.40
79	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
79	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
79	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
79	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
79	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
79	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
79	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
79	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
79	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
79	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
79	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
79	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
79	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
79	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
79	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
79	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
79	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
79	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
79	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
79	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
79	876029		Kit, Foam Slab (30`` X 32-1/2`` 2-5/8``)		Appelez-nous	-
79	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
79	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
79	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
79	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
79	946949		Consumer Buy Guide		Appelez-nous	-
79	946627		Tech Sheet		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
