SELECT A DIAGRAM

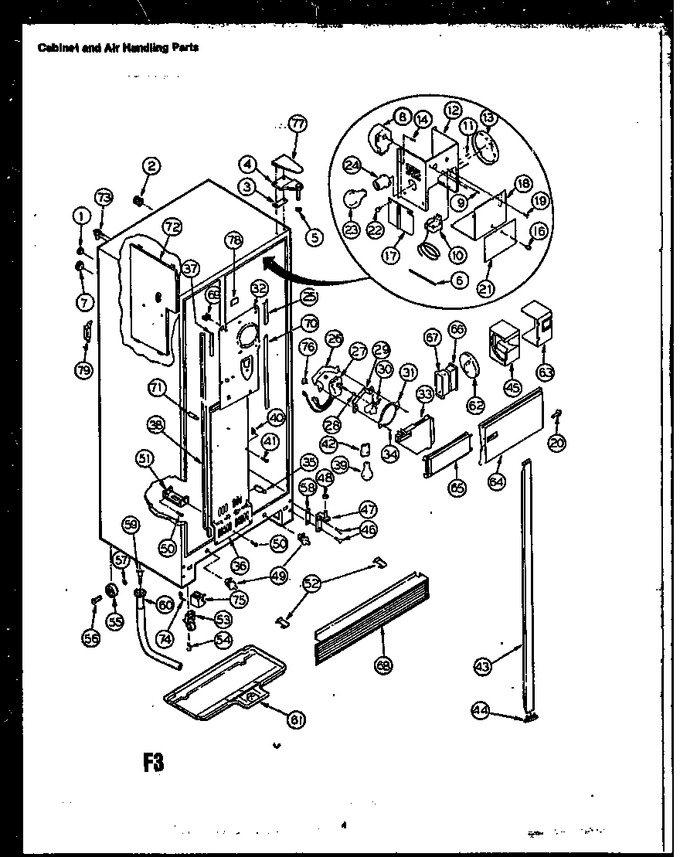

01 - Cabinet And Air Handling Parts


02 - Ice Dispenser


03 - Ice Door


04 - Ice Maker Parts


05 - Page 1


06 - Ref Door Parts


07 - Shelving


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0086568		Ferrule, Outer		Appelez-nous	-
2	Y0086452		Tube In Ferrule		Appelez-nous	-
3	Y0053325		Shim, Upper Hinge		Appelez-nous	-
4	53872		Bracket-upper Hinge R.h.		Appelez-nous	-
4	Y0053873		Bracket, Upper Hinge, Lh		Appelez-nous	-
5	0086529		Washer, Nylon		Appelez-nous	-
6	Y0086458		Tube Plastic		Appelez-nous	-
7	Y0086567		Ferrule, Inner		Appelez-nous	-
8	Y0053736		Timer, Defrost		Appelez-nous	-
9	Y0086455		Screw		Appelez-nous	-
10	Y0086493		Thermostat, Control		Appelez-nous	-
11	Y0086456		Screw		Appelez-nous	-
12	Y0053662		Bracket, Control Mtg.		Appelez-nous	-
13	Y0053663		Knob, Cold Control		Appelez-nous	-
14	Y0053676		Screw, Channel To Liner		Appelez-nous	-
16	Y53670		Stud-plastic		Appelez-nous	-
17	0053669		Bracket, Control Capillary Mtg		Appelez-nous	-
18	Y0053661		Cover, Control Bracket		Appelez-nous	-
19	Y0086488		Screw		Appelez-nous	-
20	Y0053665		Support, Refrig. Light Shield		Appelez-nous	-
21	Y0053672		Cover, Capillary Tube		Appelez-nous	-
22	Y53670		Stud-plastic		Appelez-nous	-
23	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 17.51
24	53622		Socket-light-ref		Appelez-nous	-
25	WP67006908		Screw   (Replaces: Y0053908)			Immediately	$ 7.90
25	Y0053667		Gasket, Coil Cover		Appelez-nous	-
26	Y0086481		Bracket, Rear Motor Mounting		Appelez-nous	-
27	0053626		Motor, Blower		Appelez-nous	-
28	Y0086469		Bushing Motor Mounting		Appelez-nous	-
29	Y0086482		Bracket, Front Motor Mounting		Appelez-nous	-
30	Y0053312		Fan		Appelez-nous	-
31	53708		Thermostat		Appelez-nous	-
31	Y0086553		Nut		Appelez-nous	-
31	86552		Ring - Fan Orifice				$ 95.76
32	Y0053796		Cover, Upper Coil		Appelez-nous	-
33	53902		Cover-fan		Appelez-nous	-
34	Y0086528		Screw		Appelez-nous	-
34	Y0053647		Screw No.8 X 3/4		Appelez-nous	-
35	Y0086528		Screw		Appelez-nous	-
35	Y0053664		Damper, Meat Keeper		Appelez-nous	-
36	Y0053691		Cover Lower Coil		Appelez-nous	-
37	0053739		Sub 53738 Gasket, Coil Cover		Appelez-nous	-
38	0053737		Sub 53738 Gasket, Coil Cover		Appelez-nous	-
39	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 17.51
40	Y0053636		Clip-ground		Appelez-nous	-
41	Y0086543		Screw		Appelez-nous	-
42	Y0053683		Socket, Light, Freezer		Appelez-nous	-
43	Y0053688		Clip		Appelez-nous	-
43	53660L		Mullion - Almond		Appelez-nous	-
43	Y0053689		Clip		Appelez-nous	-
43	53660W		Mullion - White		Appelez-nous	-
44	Y0053701		Trim, Mullion		Appelez-nous	-
45	Y0053659		Deflector, Air		Appelez-nous	-
46	Y0053603		Screw, Hinge		Appelez-nous	-
47	Y0053800		Bracket, Lower Hinge, Lh		Appelez-nous	-
47	0053635		Bracket, Lower Hinge, Rh		Appelez-nous	-
47	53610		Pin-shoulder		Appelez-nous	-
47	0053601		Nut, Push		Appelez-nous	-
47	Y0053609		Nut, Twin		Appelez-nous	-
48	Y0053703		Washer K		Appelez-nous	-
49	Y0053616		Switch Light		Appelez-nous	-
50	Y0053878		Screw No.8 X 5/8		Appelez-nous	-
51	53624		Manual,install/oper		Appelez-nous	-
52	0053704		Clip, Grille		Appelez-nous	-
53	Y0053917		Roller Assy, Adjustable Front		Appelez-nous	-
54	Y0053613		Bolt, Roller Mounting		Appelez-nous	-
55	0053638		Roller, Rear		Appelez-nous	-
56	Y0053639		Pin, Roller		Appelez-nous	-
57	Y0086491		Clip		Appelez-nous	-
58	Y0053640		Shim, Lower Hinge		Appelez-nous	-
59	Y0053716		Conductor, Heat		Appelez-nous	-
60	53715		Drain-outlet And Tube		Appelez-nous	-
61	0053713		Pan, Defrost		Appelez-nous	-
62	Y0053666		Knob, Damper Control		Appelez-nous	-
63	Y0053656		Box, Damper Control		Appelez-nous	-
63	Y0086528		Screw		Appelez-nous	-
64	Y0053693		Light Shield, Refrig.		Appelez-nous	-
65	0053794		Light Shield, Freezer		Appelez-nous	-
66	Y0053678		Ferrule, Outer		Appelez-nous	-
67	Y0053677		Ferrule, Inner		Appelez-nous	-
68	0053787		Kickplate, Grille		Appelez-nous	-
69	Y0086525		Support, Coil Cover		Appelez-nous	-
70	53738		Sticker,push-to-start		Appelez-nous	-
71	Y0053690		Support, Coil Cover, Lower		Appelez-nous	-
72	53708		Thermostat		Appelez-nous	-
72	Y0053785		Divider, Ice & Water		Appelez-nous	-
72	Y0053874		Support, Special Screw Mtg.		Appelez-nous	-
72	Y0053822		Support, Divider & Freezer		Appelez-nous	-
73	0053606		Clamp		Appelez-nous	-
73	0053646		Tube, Filler		Appelez-nous	-
73	Y0053903		Tube, Extension		Appelez-nous	-
74	53836		Manual,install/oper		Appelez-nous	-
74	Y0053611		Nut, Sleeve		Appelez-nous	-
75	0053789		Cover, Hinge		Appelez-nous	-
75	Y0086488		Screw		Appelez-nous	-
76	Y0053657		Bracket, Connector		Appelez-nous	-
77	Y0053870		Cover, Top Hinge		Appelez-nous	-
78	Y0086557		Pad, Foam		Appelez-nous	-
79	Y0053797		Bracket, Motor Mounting		Appelez-nous	-
NI	Y0053889		Harness, Wiring		Appelez-nous	-
NI	Y0086508		Button, Plug, Liner Holes		Appelez-nous	-
NI	Y53303		Button-plug		Appelez-nous	-
NI	Y0053684		Harness, Wiring		Appelez-nous	-
NI	Y0053710		Plug, Rear Panel & Coil Cover		Appelez-nous	-
NI	Y0086471		Screw Clamp		Appelez-nous	-
NI	Y0053795		Harness, Ice Maker		Appelez-nous	-
