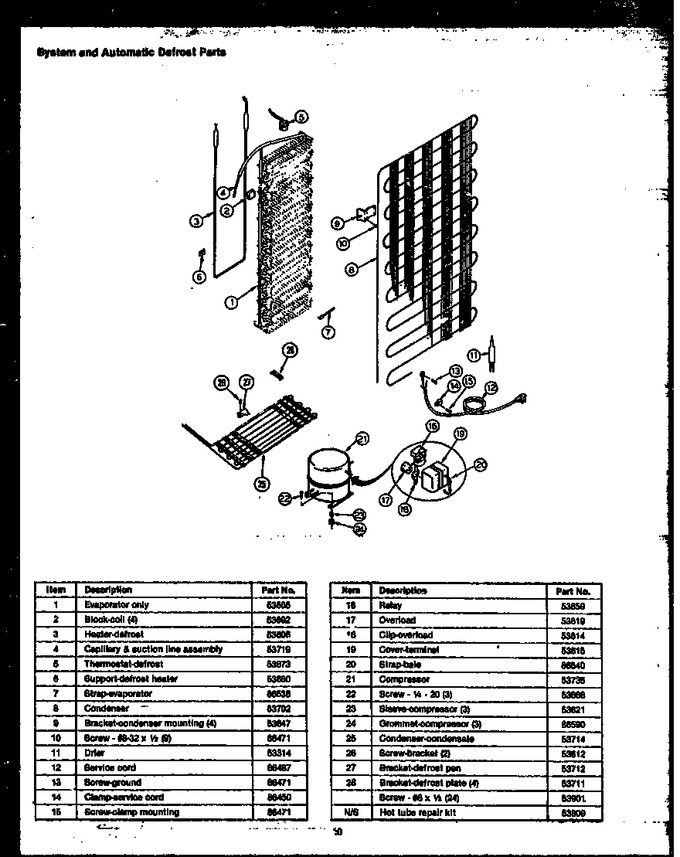

07 - Shelving


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0053805		Evaporator Only		Appelez-nous	-
2	Y0053692		Block, Coil		Appelez-nous	-
3	0053806		Heater, Defrost		Appelez-nous	-
4	Y0053719		Capillary & Suction Line Assy		Appelez-nous	-
5	Y0053673		Thermostat, Defrost		Appelez-nous	-
6	Y0053680		Support, Defrost Heater		Appelez-nous	-
7	Y0086538		Clamp, Heater		Appelez-nous	-
8	Y0053702		Condenser		Appelez-nous	-
9	Y0053647		Screw No.8 X 3/4		Appelez-nous	-
10	Y0086471		Screw Clamp		Appelez-nous	-
11	WPB2150504		Drier   (Replaces: Y0053314)				$ 123.28
12	Y0086487		Service Cord		Appelez-nous	-
13	Y0086471		Screw Clamp		Appelez-nous	-
14	Y0086450		Clamp Cover		Appelez-nous	-
15	Y0086471		Screw Clamp		Appelez-nous	-
16	Y0053859		Relay		Appelez-nous	-
17	0053619		Overload		Appelez-nous	-
18	Y0053614		Clip, Overload		Appelez-nous	-
19	53615		Cover-terminal		Appelez-nous	-
20	Y0086540		Clamp, Cover		Appelez-nous	-
21	Y0053735		Compressor		Appelez-nous	-
22	0053866		Bearing, Hinge		Appelez-nous	-
23	Y0053621		Sleeve, Compressor		Appelez-nous	-
24	0086590		Grommet Compressor Mounting		Appelez-nous	-
25	Y0053714		Condenser, Condensate		Appelez-nous	-
26	53612		Screw-bracket		Appelez-nous	-
27	Y0053712		Bracket, Defrost Pan		Appelez-nous	-
28	Y0053711		Bracket, Defrost Plate		Appelez-nous	-
28	67006425		Screw, Sm   (Replaces: Y0053901)			Immediately	$ 6.57
NI	Y0053809		Hot Tube Repair Kit		Appelez-nous	-
