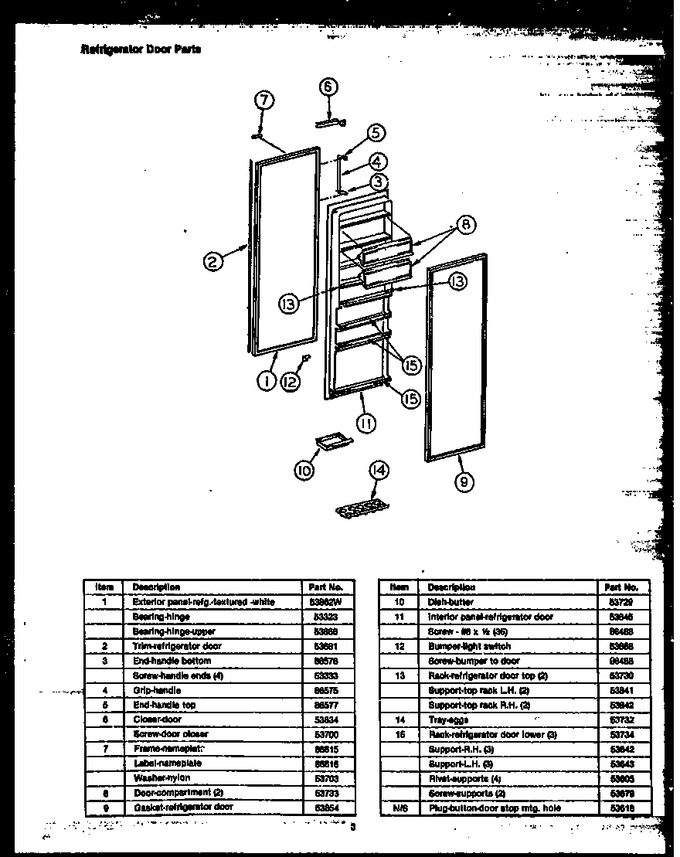

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53862W		Exterior Panel-refg.-textured-		Appelez-nous	-
1	Y0053323		Sub 86464, Hinge Bearing		Appelez-nous	-
1	0053866		Bearing, Hinge		Appelez-nous	-
2	53681		Code J		Appelez-nous	-
3	0086578		End, Handle Bottom		Appelez-nous	-
3	Y0053333		Screw, Handle		Appelez-nous	-
4	86575		Grip - Handle Fz				$ 97.41
5	0086577		Handle, End		Appelez-nous	-
6	0053634		Closer, Door		Appelez-nous	-
6	Y0053700		Screw, Door Closer		Appelez-nous	-
7	Y0053703		Washer K		Appelez-nous	-
7	Y0086616		Label, Nameplate		Appelez-nous	-
7	Y0086615		Frame, Nameplate		Appelez-nous	-
8	Y0053733		Door, Compartment		Appelez-nous	-
9	0053854		Gasket, Refrigerator Door		Appelez-nous	-
10	Y0053729		Dish, Butter		Appelez-nous	-
11	Y0053845		Interior Panel, Refrig. Door		Appelez-nous	-
11	Y0086488		Screw		Appelez-nous	-
12	Y0053668		Bumper, Light Switch		Appelez-nous	-
12	Y0086488		Screw		Appelez-nous	-
13	0053842		Support, Top Rack, Rh		Appelez-nous	-
13	0053841		Support, Top Rack, Lh		Appelez-nous	-
13	Y0053730		Rack, Refrig. Door Top		Appelez-nous	-
14	Y0053732		Tray, Egg		Appelez-nous	-
15	Y0053734		Rack, Refrig. Door, Lower		Appelez-nous	-
15	0053642		Support, Rh		Appelez-nous	-
15	0053605		Rivet A		Appelez-nous	-
15	0053643		Support, Lh		Appelez-nous	-
15	Y0053679		Screw, Supports		Appelez-nous	-
NI	Y0053618		Button Plug, Door Stop Mtghole		Appelez-nous	-
