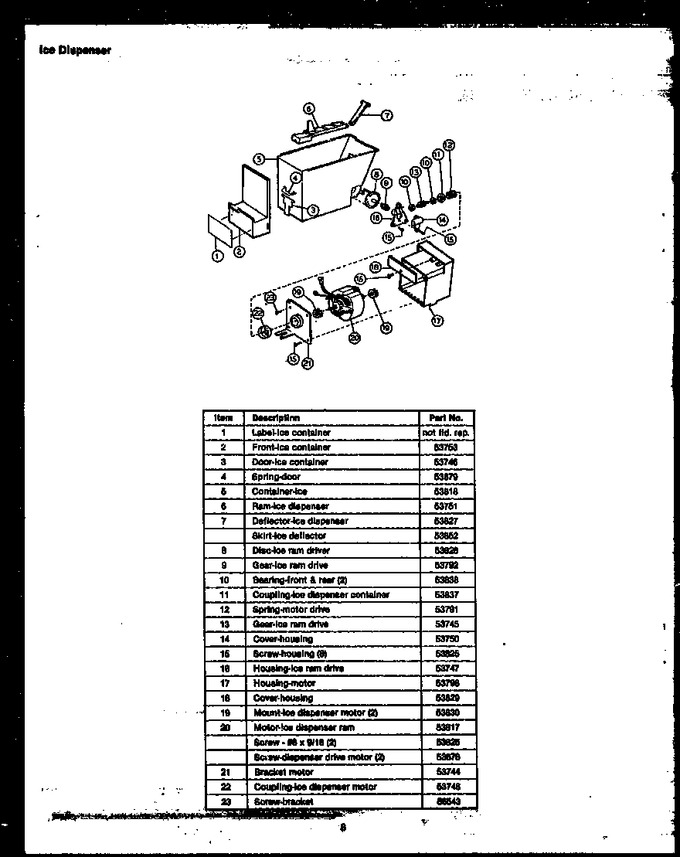

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Label-ice Container		Appelez-nous	-
2	53753		Front-ice Container		Appelez-nous	-
3	0053746		Door, Ice Container		Appelez-nous	-
4	0053879		Spring, Door		Appelez-nous	-
5	Y0053818		Container, Ice		Appelez-nous	-
6	Y0053751		Ram, Ice Dispenser		Appelez-nous	-
7	53827		Deflector-ice Dispenser		Appelez-nous	-
8	Y0053826		Disc, Ice Ram Drive		Appelez-nous	-
9	Y0053792		Gear, Ice Ram Drive		Appelez-nous	-
10	Y0053838		Bearing, Front & Rear		Appelez-nous	-
11	53837		500281 Xreplace		Appelez-nous	-
12	0053791		Spring, Motor Drive		Appelez-nous	-
13	Y0053745		Gear, Ice Ram Drive		Appelez-nous	-
14	Y0053750		Cover, Housing		Appelez-nous	-
15	Y0053825		Screw, Housing		Appelez-nous	-
16	Y0053747		Housing, Ice Ram Drive		Appelez-nous	-
17	Y0053798		Housing, Motor		Appelez-nous	-
18	Y0053829		Cover, Housing		Appelez-nous	-
19	Y0053830		Mount, Ice Dispenser Motor		Appelez-nous	-
20	Y0053817		Motor, Ice Dispenser Ram		Appelez-nous	-
20	Y0053825		Screw, Housing		Appelez-nous	-
20	Y0053676		Screw, Channel To Liner		Appelez-nous	-
21	Y0053744		Bracket, Motor		Appelez-nous	-
22	Y0053748		Coupling, Ice Dispenser Motor		Appelez-nous	-
23	Y0086543		Screw		Appelez-nous	-
NI	Y0053852		Ice Guard, Lower		Appelez-nous	-
