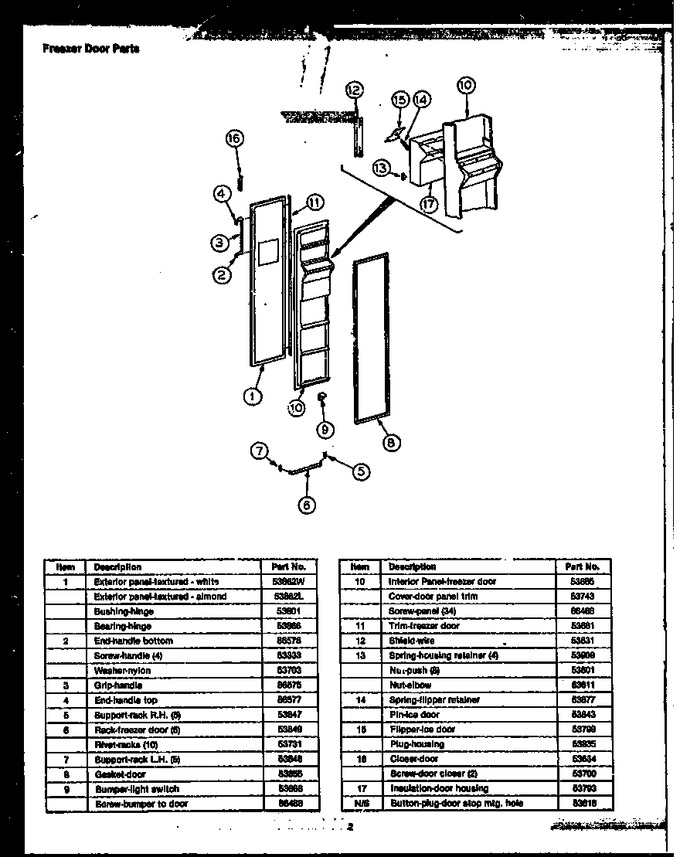

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0053801		Bushing, Hinge		Appelez-nous	-
1	53862W		Exterior Panel-refg.-textured-		Appelez-nous	-
1	53862L		Exterior Panel-textured - Almo		Appelez-nous	-
1	0053866		Bearing, Hinge		Appelez-nous	-
2	Y0053333		Screw, Handle		Appelez-nous	-
2	0086578		End, Handle Bottom		Appelez-nous	-
2	Y0053703		Washer K		Appelez-nous	-
3	86575		Grip - Handle Fz				$ 97.41
4	0086577		Handle, End		Appelez-nous	-
5	0053847		Support, Rack, Rh		Appelez-nous	-
6	0053731		Rivet, Racks		Appelez-nous	-
6	Y0053849		Rack, Freezer Door		Appelez-nous	-
7	Y0053846		Support, Rack, Lh		Appelez-nous	-
8	Y0053855		Gasket, Door		Appelez-nous	-
9	Y0053668		Bumper, Light Switch		Appelez-nous	-
9	Y0086488		Screw		Appelez-nous	-
10	0053743		Cover, Door Panel Trim		Appelez-nous	-
10	Y0053685		Trim, Basket		Appelez-nous	-
10	Y0086488		Screw		Appelez-nous	-
11	53681		Code J		Appelez-nous	-
12	Y0053831		Shield, Wire		Appelez-nous	-
13	0053601		Nut, Push		Appelez-nous	-
13	Y63611		Nut-elbow		Appelez-nous	-
13	0053909		Spring, Housing Retainer		Appelez-nous	-
14	Y0053877		Spring, Flipper Retainer		Appelez-nous	-
14	0053843		Pin, Ice Door		Appelez-nous	-
15	Y53835		Manual,install/oper		Appelez-nous	-
15	0053799		Flipper, Ice Door		Appelez-nous	-
16	Y0053700		Screw, Door Closer		Appelez-nous	-
16	0053634		Closer, Door		Appelez-nous	-
17	Y0053793		Insulation, Door Housing		Appelez-nous	-
NI	Y0053618		Button Plug, Door Stop Mtghole		Appelez-nous	-
