01 - Cabinet And Air Handling Parts


02 - Ice Dispenser


03 - Ice Door

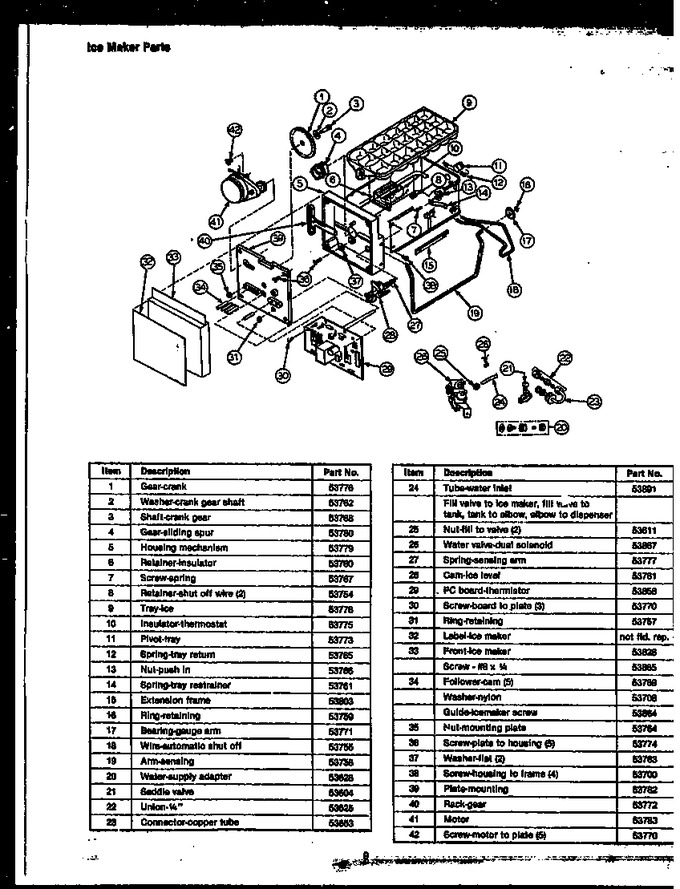

04 - Ice Maker Parts


05 - Page 1


06 - Ref Door Parts


07 - Shelving


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0053776		Gear, Crank		Appelez-nous	-
2	Y0053762		Washer, Crank Gear Shaft		Appelez-nous	-
3	55882		Assy, Switch   (Replaces: 53768)			Immediately	$ 61.79
4	Y0053780		Gear, Sliding Spur		Appelez-nous	-
5	0053779		Housing Mechanism		Appelez-nous	-
6	Y0053760		Retainer, Insulator		Appelez-nous	-
7	0053767		Screw, Spring		Appelez-nous	-
8	Y0053754		Retainer, Shut-off Wire		Appelez-nous	-
9	0053778		Tray, Ice		Appelez-nous	-
10	Y0053775		Insulator, Thermostat		Appelez-nous	-
11	53773		Pivot-tray		Appelez-nous	-
12	Y0053765		Spring, Tray Return		Appelez-nous	-
13	Y0053766		Nut, Push-in		Appelez-nous	-
14	Y0053761		Spring, Tray Restrainer		Appelez-nous	-
15	Y0053803		Extension, Frame		Appelez-nous	-
16	Y0053759		Ring, Retaining		Appelez-nous	-
17	Y0053771		Bearing, Gauge Arm		Appelez-nous	-
18	53755		Switch,selector		Appelez-nous	-
19	53758		Valve,gas-dual Input		Appelez-nous	-
20	53628		Panel Support Plate		Appelez-nous	-
21	Y0053604		Ice Maker Household Hook Up		Appelez-nous	-
22	WPW10296793A		Use M0021001   (Replaces: Y0053625)				$ 11.48
23	53653		Connector-copper Tube		Appelez-nous	-
24	WPB5705307		Tubing Plastic   (Replaces: Y0053891)				$ 11.75
25	Y0053611		Nut, Sleeve		Appelez-nous	-
26	0053867		Water Valve, Dual Solenoid		Appelez-nous	-
27	53777		Spring-sensing Arm		Appelez-nous	-
28	Y0053781		Cam, Ice Level		Appelez-nous	-
29	0053858		Pc Board, Thermistor		Appelez-nous	-
30	Y0053770		Screw		Appelez-nous	-
31	Y0053757		Ring, Retaining		Appelez-nous	-
32	Y00000000		See Note Label-ice Maker		Appelez-nous	-
33	Y0053865		Screw No.8 X 1/4``		Appelez-nous	-
33	Y0053828		Front, Ice Maker		Appelez-nous	-
34	53708		Thermostat		Appelez-nous	-
34	Y0053769		Follower, Cam		Appelez-nous	-
34	Y0053864		Guide, Icemaker Screw		Appelez-nous	-
35	Y0053764		Nut, Mounting Plate		Appelez-nous	-
36	Y0053774		Screw		Appelez-nous	-
37	Y0053763		Washer, Flat		Appelez-nous	-
38	Y0053700		Screw, Door Closer		Appelez-nous	-
39	53782		Plate-mounting		Appelez-nous	-
40	0053772		Rack, Gear		Appelez-nous	-
41	0053783		Use 0313045		Appelez-nous	-
42	Y0053770		Screw		Appelez-nous	-
