SELECT A DIAGRAM

01 - Cabinet And Air Handling Parts


02 - Ice Dispenser


03 - Ice Door


04 - Ice Maker Parts


05 - Page 1


06 - Ref Door Parts


07 - Shelving


08 - System And Automatic Defrost Parts

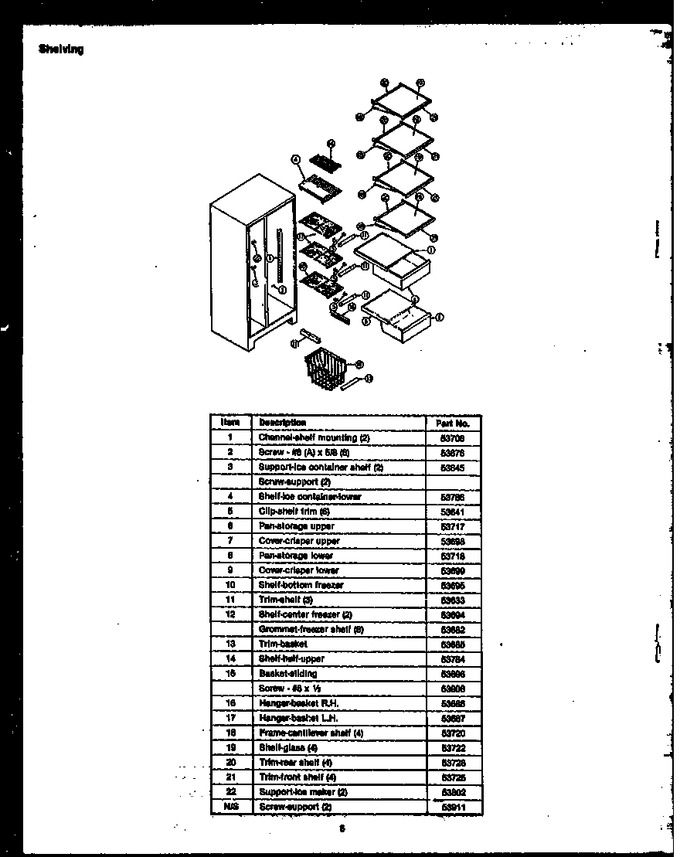

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0053706		Channel, Shelf Mounting		Appelez-nous	-
2	Y0053676		Screw, Channel To Liner		Appelez-nous	-
3	53645		Support - Shelf		Appelez-nous	-
4	Y0053786		Shelf, Lower		Appelez-nous	-
5	Y0053641		Clip, Shelf Trim		Appelez-nous	-
6	53717		Pan-storage Upper		Appelez-nous	-
7	0053698		Cover, Crisper, Upper		Appelez-nous	-
8	Y0053718		Pan, Storage, Lower		Appelez-nous	-
9	Y0053699		Cover, Crisper, Lower		Appelez-nous	-
10	Y0053695		Shelf, Bottom, Freezer		Appelez-nous	-
11	Y0053633		Trim, Shelf		Appelez-nous	-
12	Y0053694		Shelf, Center, Freezer		Appelez-nous	-
12	Y0053682		Grommet, Freezer Shelf		Appelez-nous	-
13	Y0053685		Trim, Basket		Appelez-nous	-
14	Y0053784		Shelf, Half, Upper		Appelez-nous	-
15	53696		Manual, Operation		Appelez-nous	-
15	WP67006908		Screw   (Replaces: Y0053908)			Immediately	$ 7.90
16	Y0053686		Hanger, Basket, Rh		Appelez-nous	-
17	Y0053687		Hanger, Basket, Lh		Appelez-nous	-
18	Y0053720		Frame, Cantilever Shelf		Appelez-nous	-
19	Y0053722		Shelf, Glass		Appelez-nous	-
20	Y0053728		Trim, Rear Shelf		Appelez-nous	-
21	Y0053725		Trim, Front Shelf		Appelez-nous	-
22	Y0053802		Support, Ice Maker		Appelez-nous	-
NI	53911		Cover Plate		Appelez-nous	-
