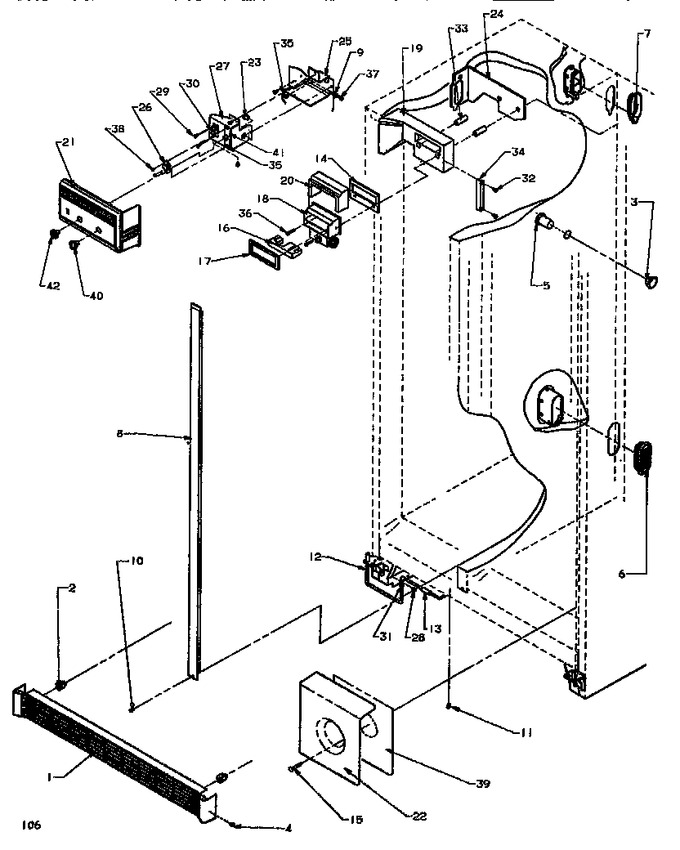

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10470308		Kit, Toe Grille (blk)		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	A3187801		Retainer		Appelez-nous	-
4	M0217225		Screw		Appelez-nous	-
6	D7785401		Grille-rtn Air		Appelez-nous	-
7	10178001		Tunnel Air Supply		Appelez-nous	-
8	D7788615		Mullion,vert-white E Ct		Appelez-nous	-
8	D7788616		L Vt Mull-pnt		Appelez-nous	-
9	M0272803		Lock Washer		Appelez-nous	-
10	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
11	M0580007		Grommet, Screw		Appelez-nous	-
12	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
13	WP4373559		Union K   (Replaces: B5706901)				$ 81.22
14	B8345401		Gasket, Damper		Appelez-nous	-
15	C6457701		Clip K		Appelez-nous	-
16	C8902601		Insert, Control		Appelez-nous	-
17	10383201		Gasket, Damper		Appelez-nous	-
18	D7547412		Control-damper		Appelez-nous	-
19	10176602		Air Duct, Waxed		Appelez-nous	-
20	D7788201		Insulation		Appelez-nous	-
21	D7790310		Cover, Control		Appelez-nous	-
22	D7879302		Cover, Tank Insul.		Appelez-nous	-
24	10177901		Gasket, Air Duct		Appelez-nous	-
25	D7822404		Box, Bottom Control		Appelez-nous	-
27	D7868605		Top, Cont. Box		Appelez-nous	-
28	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
29	M0234003		Screw		Appelez-nous	-
30	10279201		Switch		Appelez-nous	-
31	M0102301		Clamp		Appelez-nous	-
32	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
33	A3044208		Spacer Damper		Appelez-nous	-
34	C8977301		Clamp		Appelez-nous	-
35	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
36	M0216539		Screw		Appelez-nous	-
37	WP489399		Screw   (Replaces: M0232903)				$ 7.30
39	D7793403		Insulation Cut Tank		Appelez-nous	-
40	D7795822		Knob, Control		Appelez-nous	-
41	D7846105		Control-fz Temperature		Appelez-nous	-
42	D7795823		Knob, Wh Control (red)		Appelez-nous	-
