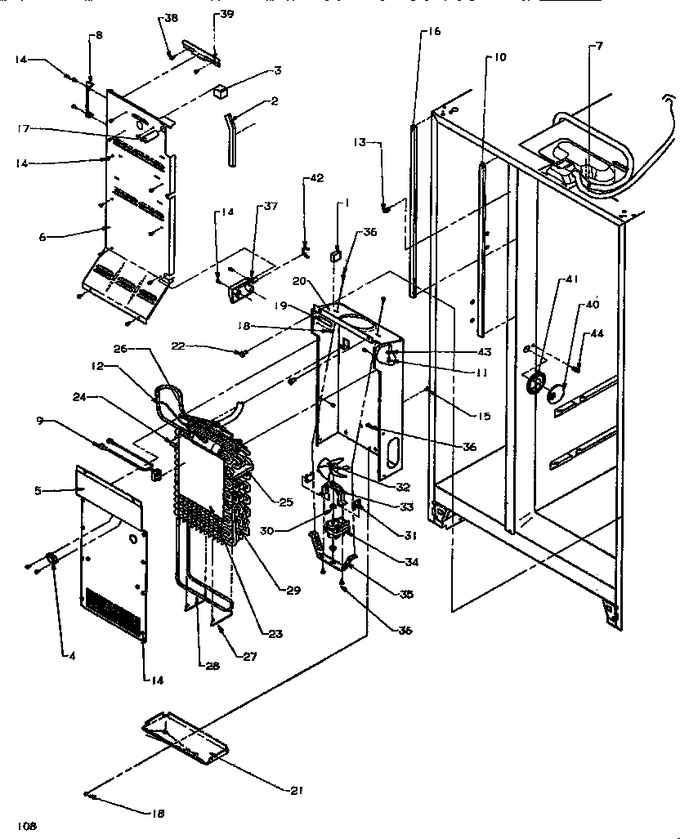

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8386603		Gasket		Appelez-nous	-
2	B8386602		Gasket		Appelez-nous	-
3	C8976102		Gasket, Air Block		Appelez-nous	-
5	D7865907		Cover, Evaporator		Appelez-nous	-
6	D7846008		Ass`y, Frz Back		Appelez-nous	-
7	10347401		Harness-ref. Liner		Appelez-nous	-
8	D7838302		Cover, Supply Air		Appelez-nous	-
9	R0161085		Kit, Thermostat   (Replaces: C8972010)				$ 124.18
10	A3189347		Gasket		Appelez-nous	-
11	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
12	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
13	M0322202		Tie Wire		Appelez-nous	-
14	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
15	M0580002		Grommet A		Appelez-nous	-
16	A3189346		Gasket		Appelez-nous	-
17	A3127413		Ext Fill Tube		Appelez-nous	-
18	10098801		Rivet		Appelez-nous	-
19	A3189362		Gasket, Foam		Appelez-nous	-
20	D7865806		Evap. Shield		Appelez-nous	-
21	D7850202		Drip Tray Pnt.		Appelez-nous	-
22	M0580003		Grommet		Appelez-nous	-
23	B8327901		Gasket, Evap.		Appelez-nous	-
24	B8385502		Block-lh Air Coil		Appelez-nous	-
25	B8385601		Block P M Air Coil		Appelez-nous	-
26	C8972011		Defrost Thermostat Assy.		Appelez-nous	-
27	C8983101		Clip, Evap. Heater		Appelez-nous	-
28	D7872805		Heater Defrost		Appelez-nous	-
29	R0170050		Assy,low Side-thin Wall Evap		Appelez-nous	-
30	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
31	A1047901		Shim		Appelez-nous	-
32	C8795501		Fan-evap		Appelez-nous	-
33	C8881301		Brkt Evap Fan		Appelez-nous	-
34	WP10513804		Motor, Evap.   (Replaces: C8891604)				$ 256.76
35	D7767703		Bracket-motor/shroud		Appelez-nous	-
36	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
37	D7786901		Cover, M.k Air		Appelez-nous	-
38	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
39	C8976201		Clamp		Appelez-nous	-
42	A3189340		Gasket Foam		Appelez-nous	-
43	M0272803		Lock Washer		Appelez-nous	-
