SELECT A DIAGRAM
New Model Search:

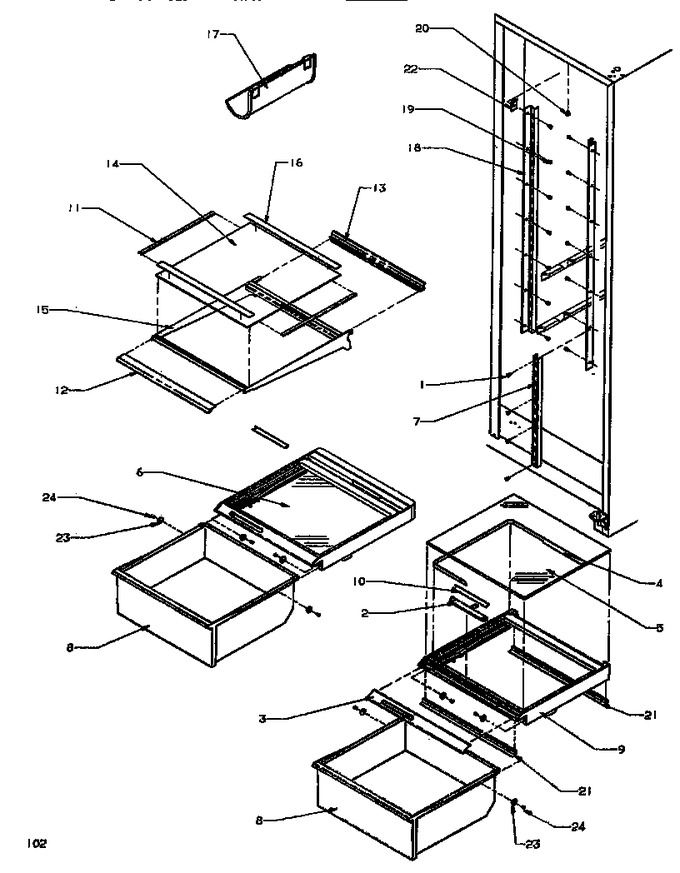

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 10289908 | Slide Crisper Control |
|
- | |||||
| 3 | 10524315 | Trim, Crisper Top Front |
|
- | |||||
| 3 | 10524303 | Trim, Crisper Top Frt |
|
- | |||||
| 4 | 10519302 | Band, Crisper |
|
- | |||||
| 5 | 10370028 | Glass, Shelf |
|
- | |||||
| 6 | 10370027 | Glass Shelf |
|
- | |||||
| 8 | 10471815 | Pan, Crisper |
|
- | |||||
| 8 | 10469017 | Pan, Crisper (lower) |
|
- | |||||
| 9 | 10469608 | Frame, Crisper |
|
- | |||||
| 9 | 10469603 | Frame, Crisper |
|
- | |||||
| 10 | 10199910 | Insert, Crisp Sl |
|
- | |||||
| 12 | 10049940 | Trim, Shelf (front) |
|
- | |||||
| 13 | C8913608 | Trim |
|
- | |||||
| 14 | 10370037 | Shelf, Glass |
|
- | |||||
| 15 | D7871024 | Frame, Cantilever Shelf |
|
- | |||||
| 18 | D7789805 | Ladder Cantilever |
|
- | |||||
| 18 | D7789806 | Ladder Cantilever |
|
- | |||||
| 19 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 20 | M0580007 | Grommet, Screw |
|
- | |||||
| 21 | 10523401 | Seal, Crisper Front |
|
- | |||||
| 21 | D7718406 | Seal, Meat Pan |
|
- | |||||
| 22 | C8992301 | Bracket |
|
- | |||||
| NI | 10543732 | Ass`y, Crisper Frame |
|
- | |||||
| NI | 10279137 | Full Glass Shelf Assembly |
|
- | |||||
| NI | 10543731 | Ass`y, Crisper Frame |
|
- |
