SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Cabinet (ref/frz)


03 - Crushed Ice Bucket


04 - Door/hinge/trim Fz


05 - Door/hinge/trim Ref


06 - Drain System & Rollers


07 - Evap & Air Handling


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Handle & Trim Ref Door


11 - Ice & Water Cavity


12 - Ice & Water Cavity


13 - Icemaker


14 - Ref Door


15 - Shelving & Drawers (ref)


16 - Shelving & Drawers (ref)


17 - Tecumseh Compressor

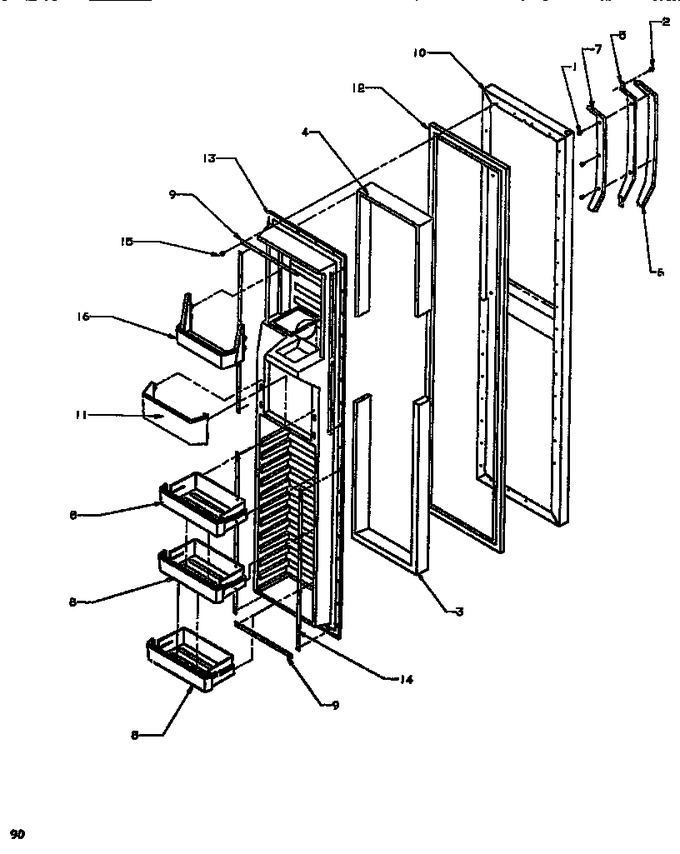

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
2	M0215116		Screw		Appelez-nous	-
3	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
4	B0523562		Insul. By The Ft.		Appelez-nous	-
5	D7826605		Handle Door		Appelez-nous	-
6	D7863101		Outer Pad K		Appelez-nous	-
7	D7863001		Inner Pad K		Appelez-nous	-
8	10521704		Bucket, Frz Dr		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	10547605W		Assy, Frz Dr (white)		Appelez-nous	-
10	10547605L		Ass`y, Frz Dr (almond)		Appelez-nous	-
11	10534704		Shelf, Half Frz		Appelez-nous	-
12	10359702		Gasket (w Frz Dr)		Appelez-nous	-
13	10520501		Liner, I/w Frz Dr		Appelez-nous	-
14	D7828601		Retainer, Door Liner		Appelez-nous	-
15	M0219730		Screw				$ 7.65
16	10525504		Shelf, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
