SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Cabinet (ref/frz)


03 - Crushed Ice Bucket


04 - Door/hinge/trim Fz


05 - Door/hinge/trim Ref


06 - Drain System & Rollers


07 - Evap & Air Handling


08 - Fz Door


09 - Fz Shelving & Ref Light


10 - Handle & Trim Ref Door


11 - Ice & Water Cavity


12 - Ice & Water Cavity


13 - Icemaker


14 - Ref Door


15 - Shelving & Drawers (ref)


16 - Shelving & Drawers (ref)


17 - Tecumseh Compressor

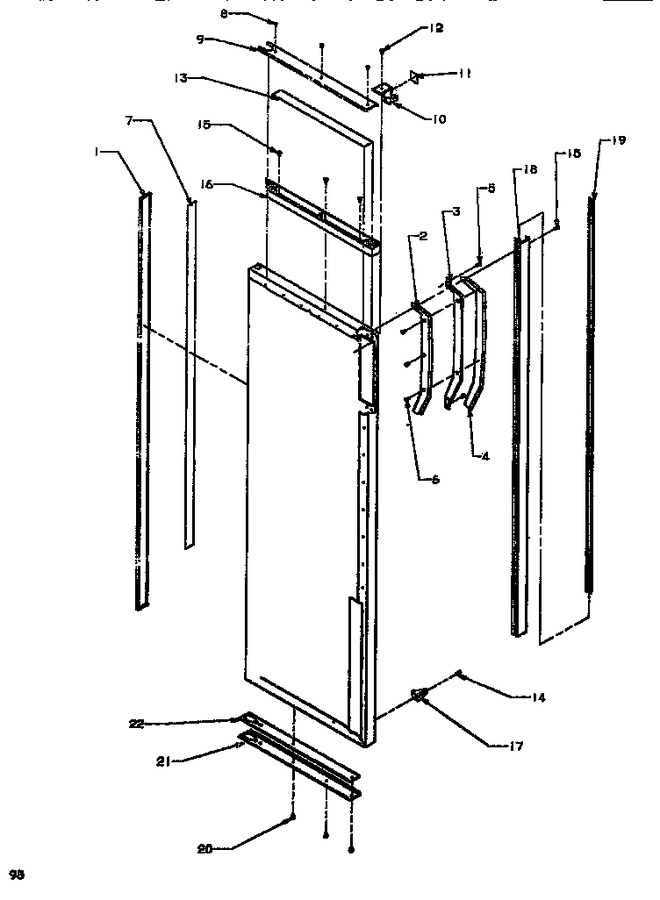

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	D7863001		Inner Pad K		Appelez-nous	-
3	D7826605		Handle Door		Appelez-nous	-
4	D7863101		Outer Pad K		Appelez-nous	-
5	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
6	M0215116		Screw		Appelez-nous	-
20	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57

    View Diagram in Separate Window       Print Part List
