Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B0523563 Insulation Ft. K Appelez-nous -
2 10520204 Ref Dr Bucket Appelez-nous -
3 10521804 Shelf, Refrig. Door Appelez-nous -
4 10521601 Liner, Ref. Door Appelez-nous -
5 10547505L Ass`y, Refr Dr (almond) Appelez-nous -
5 10547505W Ass`y, Refr Dr (white) Appelez-nous -
6 10359701 Gasket, Door (w Ref) Appelez-nous -
7 M0219730 Screw Special Order $ 7.65

8 10525101 Shelf, Dairy Appelez-nous -
9 10527314 Door, Dairy Appelez-nous -
10 10436401 Lid, Utility Appelez-nous -
11 10310901 Tray, Butter Appelez-nous -
12 10436504 Tray, Egg Appelez-nous -
13 10423125 Bin, Egg Appelez-nous -
14 10202001 Clip, Retainer Appelez-nous -
15 10520404 Shelf, Chiller Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

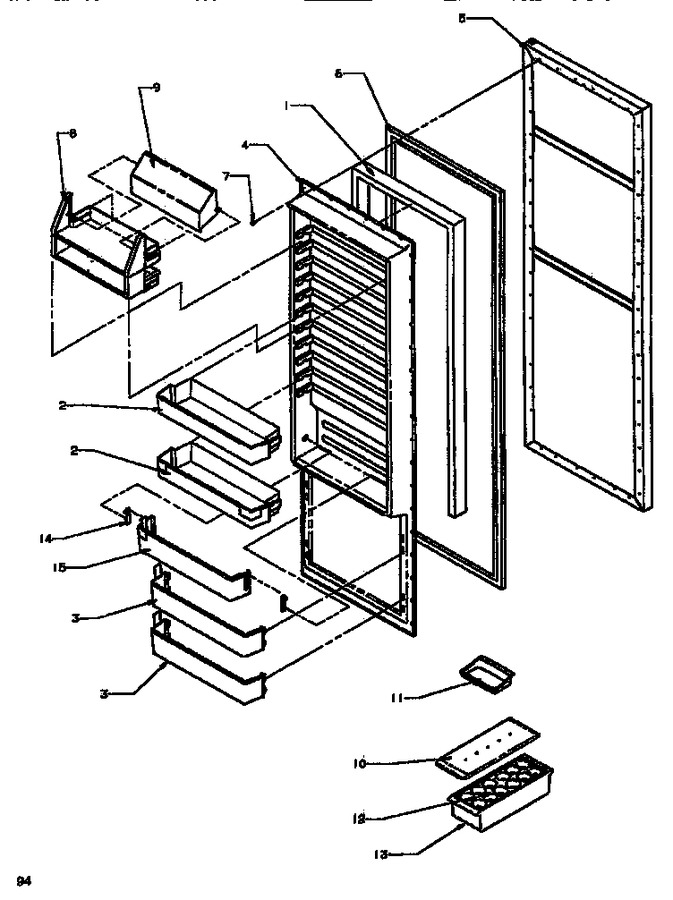

Diagram for SSD522NBL (BOM: P1181001W L)
