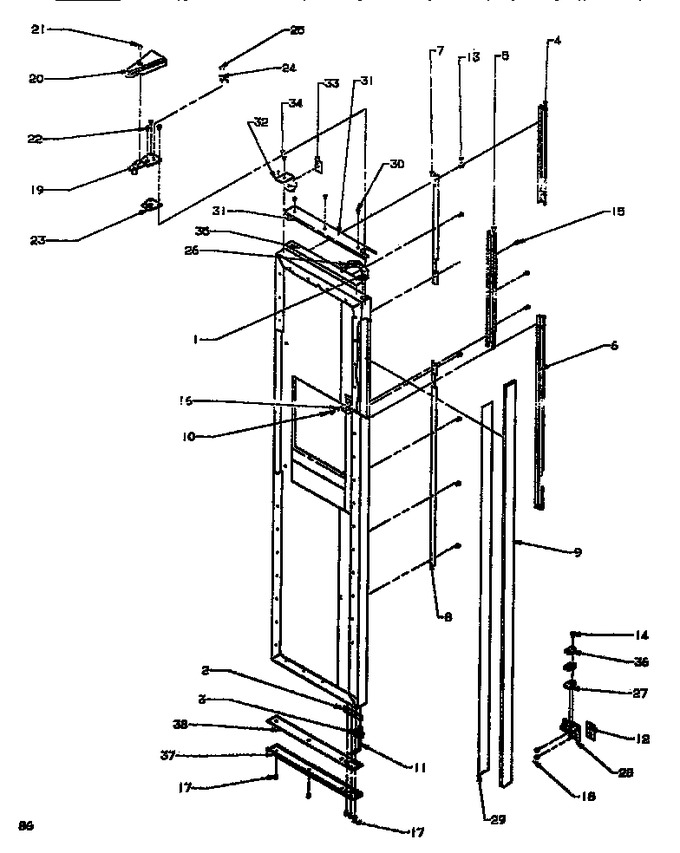

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 2 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751401) |
|
Immediately | $ 7.55 | ||||
| 4 | D7852112 | Trim, Upper Frz Dr Black |
|
- | |||||
| 5 | D7854002 | Trim Center Frz (b) |
|
- | |||||
| 6 | D7792712 | Trim, Lower Frz Dr (black) |
|
- | |||||
| 7 | D7793002 | Retainer, Trim |
|
- | |||||
| 8 | D7793102 | Retainer, Trim |
|
- | |||||
| 10 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 11 | WPB5705307 | Tubing Plastic (Replaces: B5705308) |
|
$ 13.05 | |||||
| 12 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 12 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 13 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 14 | WP489128 | Screw (Replaces: M0220417) |
|
$ 11.40 | |||||
| 15 | M0216517 | Screw |
|
- | |||||
| 17 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 18 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 19 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 20 | 10504007 | Cover, Hinge (white) |
|
- | |||||
| 20 | 10504008 | Cover, Hinge (almond) |
|
- | |||||
| 21 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 7.55 | ||||
| 22 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 23 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 25 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 26 | 10487602 | Harness-fz Door |
|
- | |||||
| 27 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 7.55 | ||||
| 28 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 36 | B8387702 | Shim, Door Closure |
|
- | |||||
| 36 | B8387701 | Shim, Door Closure |
|
- |
