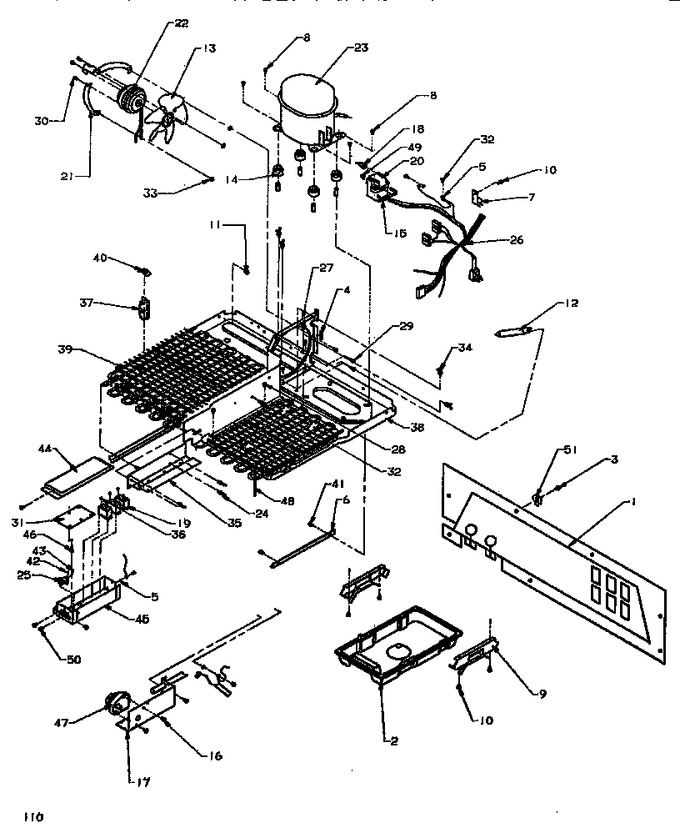

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7788908		Ass`y, Mach Comp. Back		Appelez-nous	-
2	D7790601		Drain Pan		Appelez-nous	-
3	M0219704		Screw		Appelez-nous	-
4	B5759604		Gasket		Appelez-nous	-
5	M0272803		Lock Washer		Appelez-nous	-
6	D7835501		Support M.c.		Appelez-nous	-
7	M0102325		Clamp		Appelez-nous	-
8	M0221548		Screw, Shoulder		Appelez-nous	-
9	D7790501		Support Drain Pan		Appelez-nous	-
10	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
11	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
12	4007A		Drier   (Replaces: B2150502)			Immediately	$ 15.05
13	B5742601		Blade, Fan		Appelez-nous	-
14	WPW10169124		Grommet, Compressor   (Replaces: 10514101)				$ 7.55
15	A3041801		Strap K		Appelez-nous	-
16	M0218118		Screw		Appelez-nous	-
17	D7844202		Bracket, Timer		Appelez-nous	-
18	C3689111		Overload		Appelez-nous	-
20	B0551801		Terminal Cover		Appelez-nous	-
21	C8982101		Bracket, Cond Motor		Appelez-nous	-
22	D7846901		Motor-condenser		Appelez-nous	-
23	D7351107		Compressor		Appelez-nous	-
26	10509401		Harness, M.c.		Appelez-nous	-
27	D7844114		Shroud, Condenser		Appelez-nous	-
28	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
29	M0221332		Screw, Shoulder		Appelez-nous	-
30	M0223803		Screw		Appelez-nous	-
32	M0253916		Screw		Appelez-nous	-
33	M0500107		Grommet K		Appelez-nous	-
34	M0585402		Tie Wire		Appelez-nous	-
34	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
37	B8346301		Spacer Cond.		Appelez-nous	-
38	D7748614		Basepan, M. C.		Appelez-nous	-
39	D7824503		Condenser Pntd		Appelez-nous	-
40	M0293703		Speednut		Appelez-nous	-
41	M0217224		Screw		Appelez-nous	-
47	10129302		Kit, Defrost Timer		Appelez-nous	-
48	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
49	C3689205		Relay		Appelez-nous	-
51	M0102301		Clamp		Appelez-nous	-
NI	C8916701		Spring K		Appelez-nous	-
