SELECT A DIAGRAM

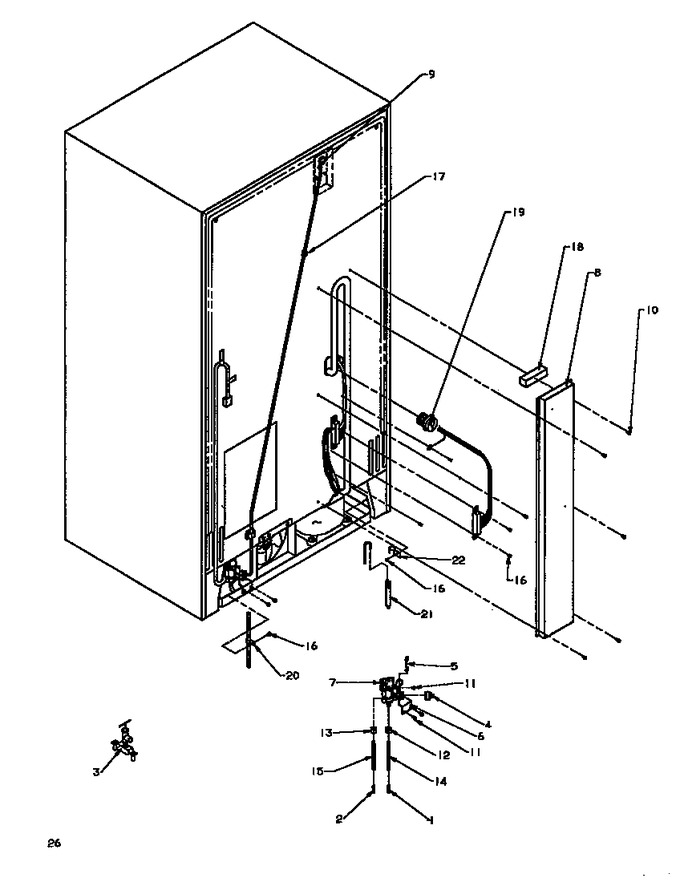

01 - Cabinet Back


02 - D7824702-compact Icemaker


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door Hinge/trim


07 - Fz Shelfs/ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Bucket


11 - Icemaker


12 - Machine Compartment


13 - Ref Door


14 - Ref Door Hinge/trim


15 - Ref Shelves/drawers


16 - Ref Shelving/drawers


17 - Ref/fz Controls & Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055104		Spring, Anti-kink		Appelez-nous	-
3	A3034801		Saddle Valve		Appelez-nous	-
4	10244901		Coupling		Appelez-nous	-
5	10798001		Clip, Water Valve		Appelez-nous	-
6	10496301		Brkt, Water Val.		Appelez-nous	-
7	WPW10245167		Valve, Water   (Replaces: D7742203)				$ 120.73
8	10581302		Cover, Ht Exch		Appelez-nous	-
9	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
10	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
11	681390		Screw   (Replaces: M0251015)				$ 13.71
12	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
13	M0753002		Nut, Sleeve		Appelez-nous	-
14	B5705322		Tube, Plastic		Appelez-nous	-
15	D7787805		Tank, Coil Water		Appelez-nous	-
16	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
17	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
18	A3189357		Gasket, Foam		Appelez-nous	-
19	10110601		Grommet		Appelez-nous	-
20	M0103904		Clamp, Speed		Appelez-nous	-
21	4007A		Drier   (Replaces: B2150503)			Immediately	$ 15.05
22	10547001		Clip, Drier		Appelez-nous	-
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21

    View Diagram in Separate Window       Print Part List
