SELECT A DIAGRAM
New Model Search:

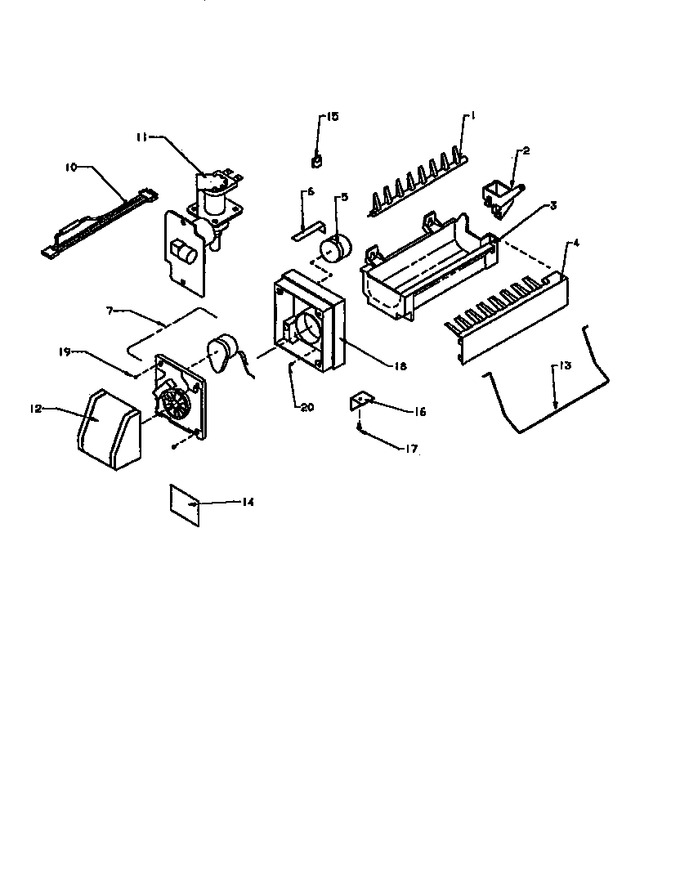

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 2 | WP628356 | Inlet, Water (Replaces: R0156627) |
|
$ 53.75 | |||||
| 3 | D7824706Q | Assy, Mold & Heater (Replaces: R0156669) |
|
Immediately | $ 167.35 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 5 | WP627985 | N/a See Notes-thermostat (Replaces: R0161060) |
|
$ 114.64 | |||||
| 6 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.60 | |||||
| 7 | W10190935 | Module & Mtr Assy,120v/60hz (Replaces: R0167203) |
|
Immediately | $ 110.07 | ||||
| 10 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 73.97 | ||||
| 11 | W10833899 | Kit, Water Valve (Replaces: 10524601) |
|
Immediately | $ 253.55 | ||||
| 12 | WPW10289690 | Cover, Ice Maker (Replaces: 10519803) |
|
Immediately | $ 8.82 | ||||
| 13 | WP67004028 | Arm, I.m. Shut-off (Replaces: D7813101) |
|
Immediately | $ 95.92 | ||||
| 14 | C8979501 | Label Diagnostic Im |
|
- | |||||
| 15 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 11.10 | |||||
| 16 | B8391801 | Bracket, I/m |
|
- | |||||
| 17 | M0211116 | Screw, Sm |
|
- | |||||
| 18 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 19 | R0186041 | Screw |
|
- | |||||
| 20 | R0186040 | Screw |
|
- |
