Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10580901L Assy Ref. Dr Fm Appelez-nous -
1 10580901W Assy Ref Dr Fm Appelez-nous -
2 10579901 Liner, Refr Door Appelez-nous -
3 10580003 Bucket, Refr Dr Appelez-nous -
4 10580103 Shelf, Refr. Dr Appelez-nous -
5 10580303 Shelf-gallon Appelez-nous -
6 B0523563 Insulation Ft. K Appelez-nous -
7 10359705 Gasket, Door (w Ref) Appelez-nous -
8 M0219730 Screw Special Order $ 7.65

9 10581005 Door, Dairy Appelez-nous -
10 10169004 Snugger, Shelf Appelez-nous -
11 10310901 Tray, Butter Appelez-nous -
12 10423120 Bin, Egg Appelez-nous -
13 10436404 Lid, Utility Special Order $ 60.85

14 10436504 Tray, Egg Appelez-nous -
15 10202001 Clip, Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

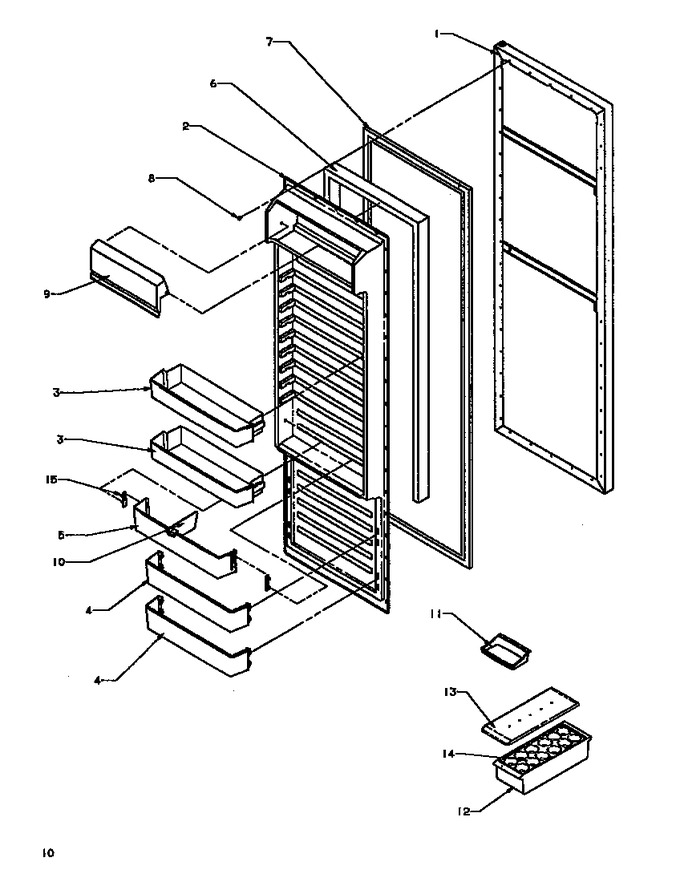

Diagram for SXD19N (BOM: P1168802W)
