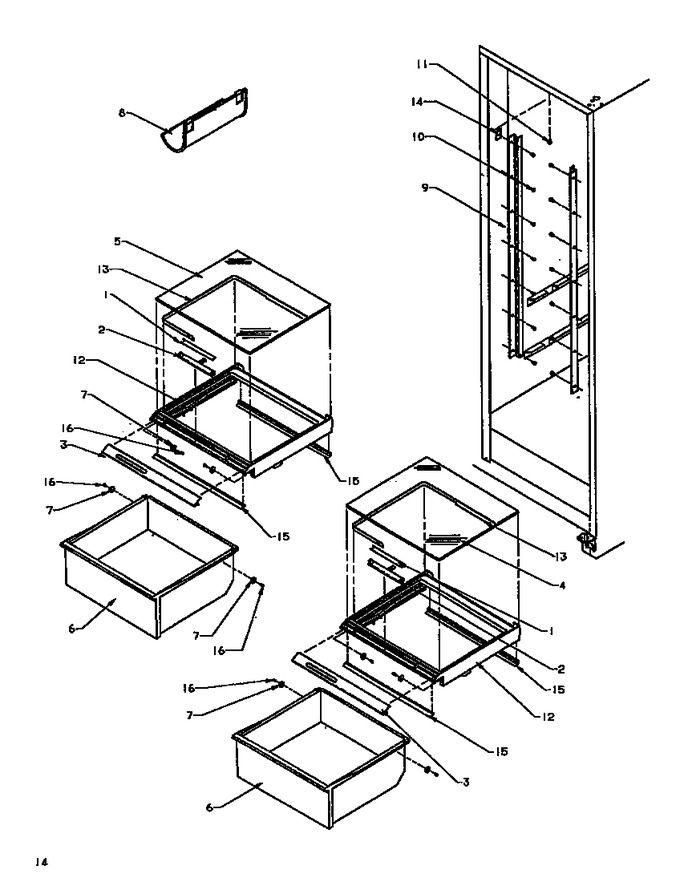

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10199910		Insert, Crisp Sl		Appelez-nous	-
2	10289908		Slide Crisper Control		Appelez-nous	-
3	10524302		Trim, Crisper Top Frt		Appelez-nous	-
4	Y10370045		Glass, Shelf		Appelez-nous	-
5	10370046		Glass, Shelf		Appelez-nous	-
6	10471908		Pan-crisper		Appelez-nous	-
7	10481001		Roller, Pan				$ 10.99
8	10448901		Rack, Wine		Appelez-nous	-
9	D7789806		Ladder Cantilever		Appelez-nous	-
9	D7789805		Ladder Cantilever		Appelez-nous	-
10	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
11	M0580007		Grommet, Screw		Appelez-nous	-
12	10470101		Frame, Crisper		Appelez-nous	-
12	10470102		Frame, Crisper		Appelez-nous	-
13	10519307		Band, Crisper		Appelez-nous	-
14	C8992301		Bracket		Appelez-nous	-
15	10523402		Seal, Crisper Frt		Appelez-nous	-
15	D7718402		Seal Crisper		Appelez-nous	-
16	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
NI	10543736		Ass`y, Lwr Crisp Fr		Appelez-nous	-
NI	10543735		Assy,up Crisp Frm.		Appelez-nous	-
