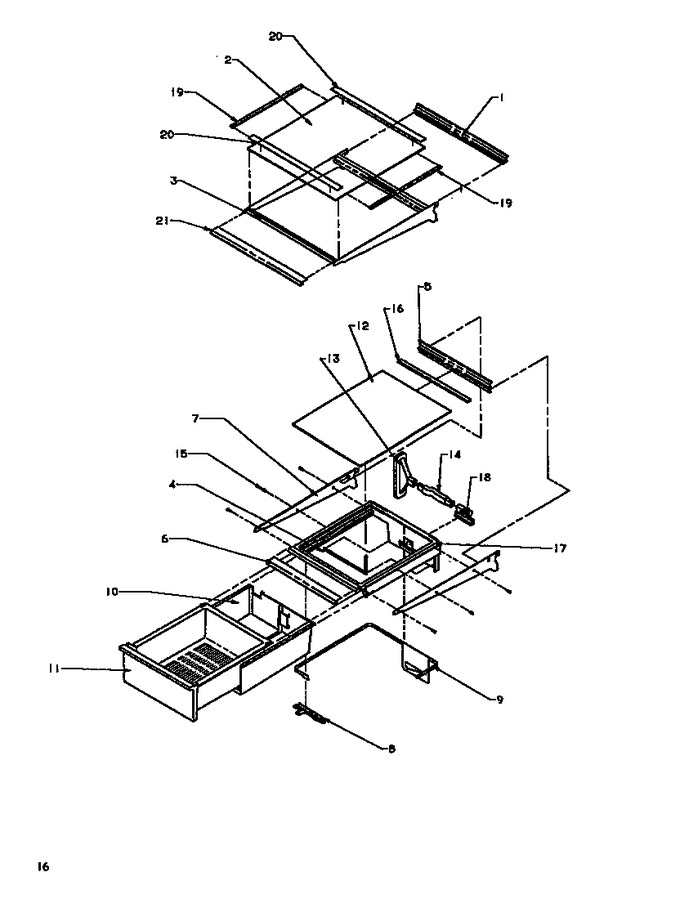

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8913610		Trim, Glass Shelf		Appelez-nous	-
2	10370047		Glass, Shelf		Appelez-nous	-
3	10579111		Frame, Cantilever Shelf		Appelez-nous	-
4	A3030353		Gasket		Appelez-nous	-
5	C8990406		Trim M.k Top Rear		Appelez-nous	-
6	10049959		Trim, Shelf Front		Appelez-nous	-
7	D7862988		Rail, Blank Side		Appelez-nous	-
7	D7862989		Rail, Blank Side		Appelez-nous	-
8	D7859402		Slide-mk Control		Appelez-nous	-
9	D7859504		Band M.k. Control		Appelez-nous	-
10	D7698112		Sleeve M.k. V		Appelez-nous	-
11	D7698342		Pan-meatkeeper		Appelez-nous	-
12	10370048		Glass, Shelf (mk Shelf)		Appelez-nous	-
13	10546701		Grommet, Meat Keeper		Appelez-nous	-
14	D7869001		Xduct M.k. Air		Appelez-nous	-
15	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
16	10043101		Ext. Rear Glass		Appelez-nous	-
17	D7853303		Frame,meatkeeper		Appelez-nous	-
18	D7869101		Ext. Air Duct		Appelez-nous	-
19	10635802		Extr., Glass Shelf		Appelez-nous	-
20	A3189355		Gasket, Foam		Appelez-nous	-
21	10049958		Trim, Shelf Front		Appelez-nous	-
NI	10582420		Ass`y, Split Shelf		Appelez-nous	-
