SELECT A DIAGRAM
New Model Search:

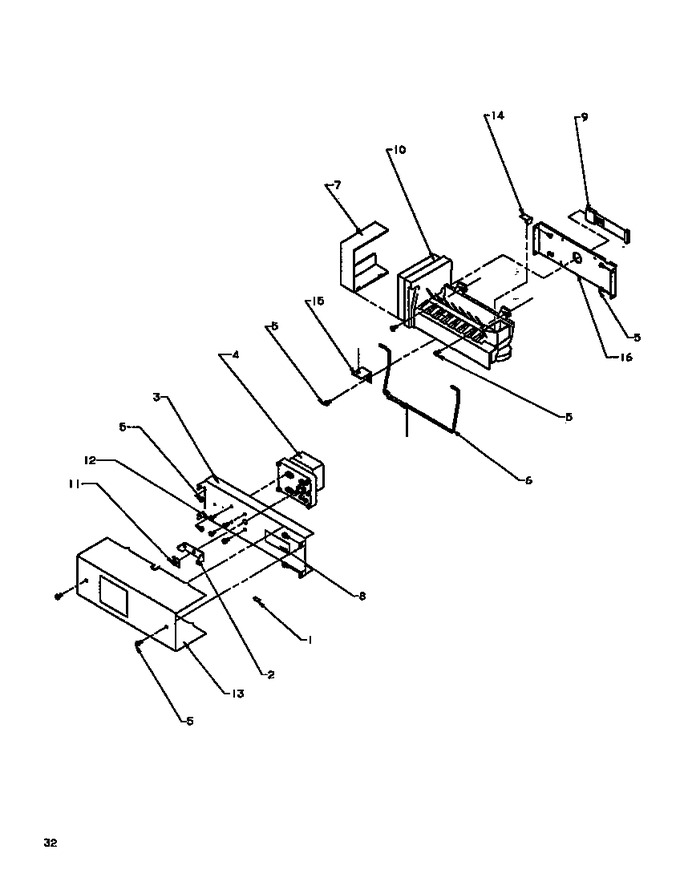

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0585203 | Tie, Wire |
|
- | |||||
| 2 | D7849501 | Driver |
|
- | |||||
| 3 | D7749205 | Support,auger Motor |
|
- | |||||
| 4 | D7749301 | Motor-auger |
|
- | |||||
| 5 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 6 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 7 | D7820401 | Cover Im |
|
- | |||||
| 8 | A3030305 | Gasket-per Ft |
|
- | |||||
| 9 | D7824601 | Harness |
|
$ 57.59 | |||||
| 10 | D7824706Q | Ice Maker (Replaces: D7824702) |
|
Immediately | $ 167.35 | ||||
| 11 | M0120501 | Nut |
|
- | |||||
| 12 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 13 | D7788808 | Auger Motor Cover Pnt |
|
- | |||||
| 14 | B5720301 | Clip |
|
- | |||||
| 15 | B8391802 | Bracket, I/m |
|
- | |||||
| 16 | D7821003 | Support-im |
|
- |
