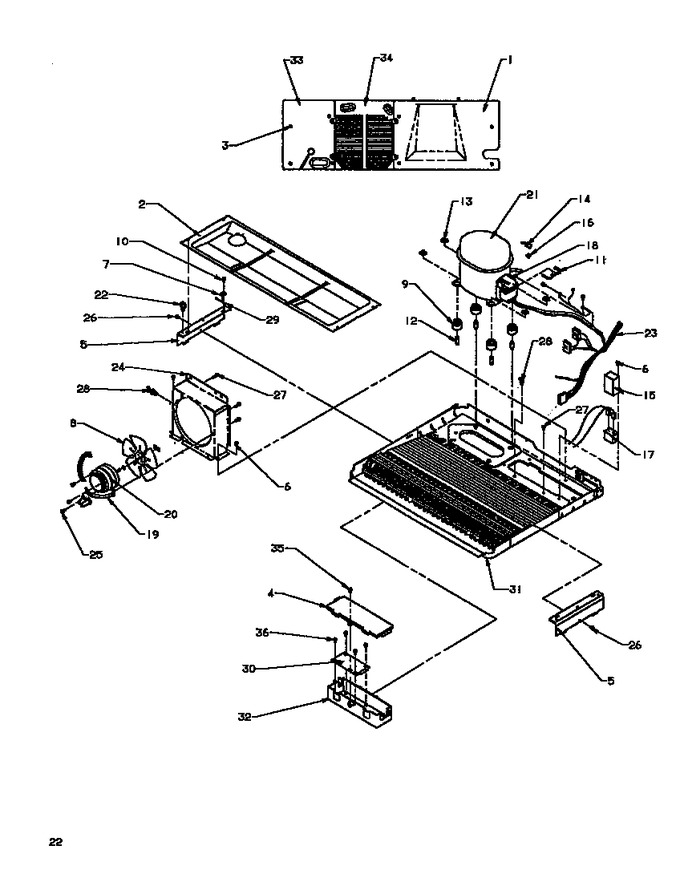

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10578701 | Ass`y, Mach Comp Back (r) |
|
- | |||||
| 2 | 10507902 | Pan, Drain |
|
- | |||||
| 3 | M0219704 | Screw |
|
- | |||||
| 4 | 10497801 | Cover H.v. Box |
|
- | |||||
| 5 | 10495701 | Bracket, Drain Pan Mtg. |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 7 | M0585601 | Tab, Wire Tie |
|
- | |||||
| 8 | 10518701 | Blade, Fan |
|
- | |||||
| 9 | WPW10169124 | Grommet (Replaces: B8333401) |
|
$ 7.55 | |||||
| 10 | M0213529 | Screw |
|
- | |||||
| 11 | YB8358601 | Bale Strap |
|
- | |||||
| 12 | B8384901 | Pin, Comp. Mtg. |
|
- | |||||
| 13 | B8385001 | Clip, Comp. Mtg |
|
- | |||||
| 14 | 10377003 | Overload |
|
- | |||||
| 15 | 10266401 | Shield-capacitor |
|
- | |||||
| 16 | 2154436 | Relay-ptc (Replaces: C8931502) |
|
$ 141.69 | |||||
| 17 | WPW10662129 | Capacitor (Replaces: C8931602) |
|
Immediately | $ 58.86 | ||||
| 18 | C8960801 | Term Cover |
|
- | |||||
| 19 | 10496501 | Kit,shroud/brkt Sound |
|
- | |||||
| 20 | 833697 | Motor, Fan (Replaces: 10448603) |
|
Immediately | $ 88.15 | ||||
| 21 | W10439652 | Kit, Compressor (Replaces: 10507802) |
|
$ 442.20 | |||||
| 22 | M0118703 | Clip, Guide |
|
- | |||||
| 23 | 10704301 | Harness, Mach Comp |
|
- | |||||
| 24 | 10602404 | Kit,shroud/brkt Sound |
|
- | |||||
| 25 | M0223803 | Screw |
|
- | |||||
| 26 | A4539603 | Pop Rivet |
|
- | |||||
| 27 | M0253916 | Screw |
|
- | |||||
| 28 | M0585402 | Tie Wire |
|
- | |||||
| 29 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 30 | 10461505 | Cont, Adap. Defrost |
|
- | |||||
| 31 | 10580402 | Ass`y, Cond/pan (e Coat) |
|
- | |||||
| 32 | 10495901 | Box, H. V. |
|
- | |||||
| 33 | 10578801 | Ass`y, L. Mc Back |
|
- | |||||
| 34 | 10470508 | Mc Back-e Ct |
|
- | |||||
| 35 | M0216517 | Screw |
|
- | |||||
| 36 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 |
