SELECT A DIAGRAM

01 - Cabinet Back


02 - D7824702-compact Icemaker


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door Hinge/trim


07 - Fz Shelfs/ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Bucket


11 - Icemaker


12 - Machine Compartment


13 - Ref Door


14 - Ref Door Hinge/trim


15 - Ref Shelves/drawers


16 - Ref Shelving/drawers


17 - Ref/fz Controls & Cabinet

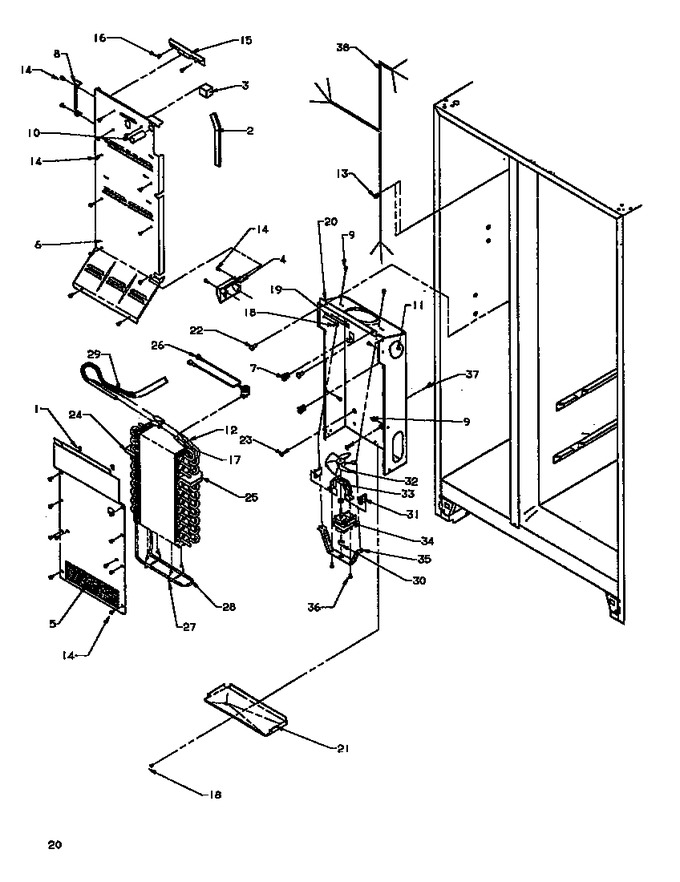

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8324801		Clip Ground		Appelez-nous	-
2	B8386602		Gasket		Appelez-nous	-
3	C8976102		Gasket, Air Block		Appelez-nous	-
4	D7786901		Cover, M.k Air		Appelez-nous	-
5	D7865914		Cover, Evap.		Appelez-nous	-
6	D7821101		Back, Inner Frz		Appelez-nous	-
7	10623003		Clip, Evaporator		Appelez-nous	-
8	D7838302		Cover, Supply Air		Appelez-nous	-
9	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
10	A3127411		Ext, Fill Tube		Appelez-nous	-
11	WP489399		Screw   (Replaces: M0232903)				$ 7.30
12	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
13	M0322202		Tie Wire		Appelez-nous	-
14	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
15	C8976201		Clamp		Appelez-nous	-
16	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
17	M0321209		Tie-elect.		Appelez-nous	-
18	10098801		Rivet		Appelez-nous	-
19	A3189362		Gasket, Foam		Appelez-nous	-
20	D7865808		Evap. Shield		Appelez-nous	-
21	D7850202		Drip Tray Pnt.		Appelez-nous	-
22	M0580003		Grommet		Appelez-nous	-
23	10527401		Clip, Evap		Appelez-nous	-
24	10629601		Block, Air Coil (left)		Appelez-nous	-
25	10629001		Block, Air Coil (right)		Appelez-nous	-
26	R0161087		Thermostat, Defrost   (Replaces: 10544001)				$ 128.76
27	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
28	WP12049801		Heater, Evap   (Replaces: 10428405)				$ 149.50
29	R0170049		Assy,low Side		Appelez-nous	-
30	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
31	A1047901		Shim		Appelez-nous	-
32	C8795501		Fan-evap		Appelez-nous	-
33	C8881301		Brkt Evap Fan		Appelez-nous	-
34	WPC8891605		Motor, Evap Fan   (Replaces: C8891605)				$ 344.82
35	D7767703		Bracket-motor/shroud		Appelez-nous	-
36	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
37	M0580002		Grommet A		Appelez-nous	-
38	10704101		Harness, Inner Liner		Appelez-nous	-
NI	M0321038		Sleeve, Vinyl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
