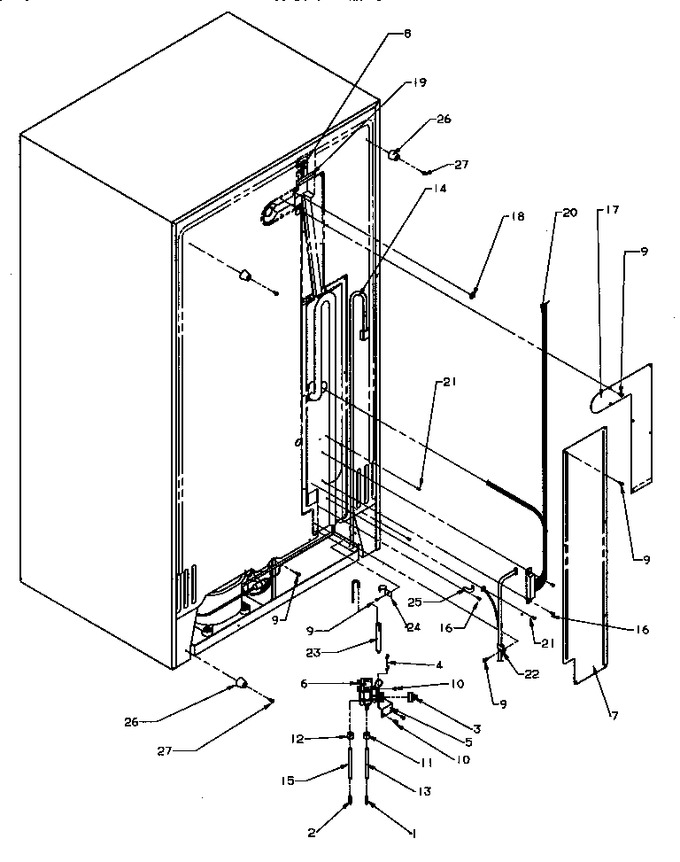

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door Hinge And Trim Parts


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Maker


11 - Machine Compartment


12 - Ref Door


13 - Ref Door Hinge And Trim Parts


14 - Ref Shelving And Drawers


15 - Ref Shelving And Drawers


16 - Ref/fz Controls And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055104		Spring, Anti-kink		Appelez-nous	-
3	NC2098LF		Coupling   (Replaces: 10244903)				$ 24.74
4	10798001		Clip, Water Valve		Appelez-nous	-
5	10496301		Brkt, Water Val.		Appelez-nous	-
6	WPW10245167		Valve, Water   (Replaces: D7742204)				$ 120.73
7	10178402		Cover, O.c.back		Appelez-nous	-
8	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
9	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
10	681390		Screw   (Replaces: M0251015)				$ 13.71
11	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
12	M0753002		Nut, Sleeve		Appelez-nous	-
13	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
14	10916504		Cord-power		Appelez-nous	-
15	D7787804		Tank, Coil Water		Appelez-nous	-
16	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
17	10178504		Cover - Wire		Appelez-nous	-
18	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
19	A3189336		Gasket, Foam		Appelez-nous	-
20	10983001		Harness, Cabinet		Appelez-nous	-
21	M0232317		Screw		Appelez-nous	-
22	M0103904		Clamp, Speed		Appelez-nous	-
23	4007A		Drier   (Replaces: B2150503)			Immediately	$ 15.05
24	10547001		Clip, Drier		Appelez-nous	-
25	B5794201		Clamp		Appelez-nous	-
26	C8960601		Foot, Outer Case		Appelez-nous	-
27	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
