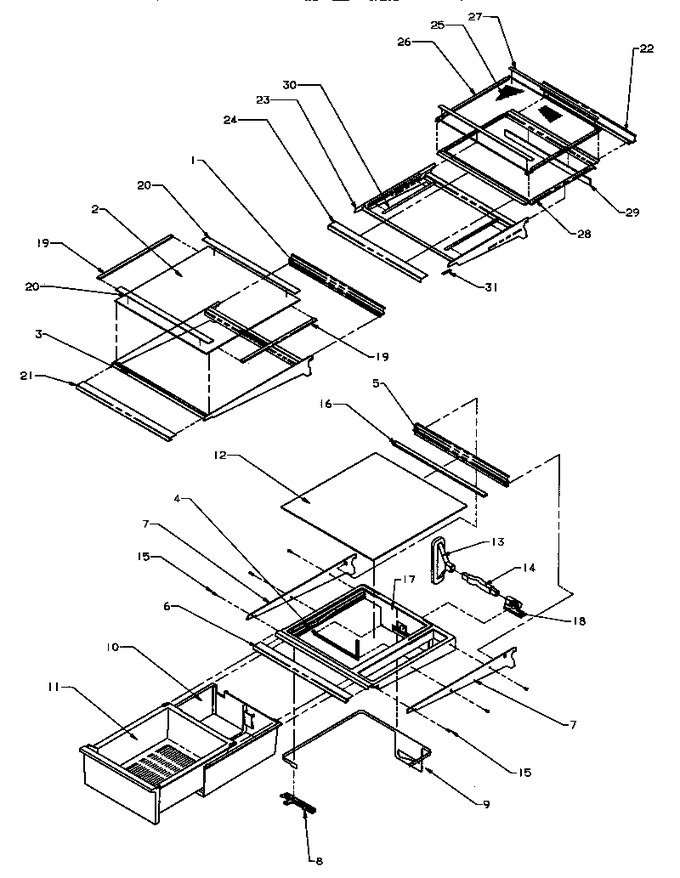

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8913613 | Trim Rear Shelf |
|
- | |||||
| 2 | 10370022 | Glass, Shelf |
|
- | |||||
| 3 | 10579105 | Frame, Cant. Shelf |
|
- | |||||
| 4 | A3030353 | Gasket |
|
- | |||||
| 5 | C8990405 | Trim, Rear |
|
- | |||||
| 6 | 10049939 | Trim, Shelf Frt |
|
- | |||||
| 7 | D7862990 | Rail, Blank Side L |
|
- | |||||
| 7 | D7862991 | Rail, Blank Side R |
|
- | |||||
| 8 | D7859402 | Slide-mk Control |
|
- | |||||
| 9 | D7859504 | Band M.k. Control |
|
- | |||||
| 10 | D7698112 | Sleeve M.k. V |
|
- | |||||
| 11 | D7698342 | Pan-meatkeeper |
|
- | |||||
| 12 | 10370031 | Glass, Shelf |
|
- | |||||
| 13 | 10549301 | Grommet, Mk |
|
- | |||||
| 14 | D7869001 | Xduct M.k. Air |
|
- | |||||
| 15 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 16 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 17 | D7857005 | Frame, M.k |
|
- | |||||
| 18 | D7869101 | Ext. Air Duct |
|
- | |||||
| 19 | 10635803 | Extr., Glass Shelf |
|
- | |||||
| 20 | A3189354 | Gasket, Foam |
|
- | |||||
| 21 | 10049938 | Trim, Shelf (front) |
|
- | |||||
| 22 | C8913619 | Trim, Glass Shlf Rear |
|
- | |||||
| 23 | 10824403 | Frame, Cant. Shelf |
|
- | |||||
| 24 | 10049940 | Trim, Shelf (front) |
|
- | |||||
| 25 | 10370069 | Glass, Shelf |
|
- | |||||
| 26 | 10635803 | Extr., Glass Shelf |
|
- | |||||
| 27 | A3189353 | Gasket, Foam |
|
- | |||||
| 28 | 10825203 | Frame, Sliding |
|
- | |||||
| 29 | 10850701 | Stop, Refr Shelf |
|
- | |||||
| 30 | 10826703 | Bearing, Refr. Shelf |
|
- | |||||
| 31 | 10903701 | Block, Glide |
|
- | |||||
| NI | 10834404 | Assy, Sliding Shelf |
|
- | |||||
| NI | 10582410 | Assy, Split Shelf |
|
- |
