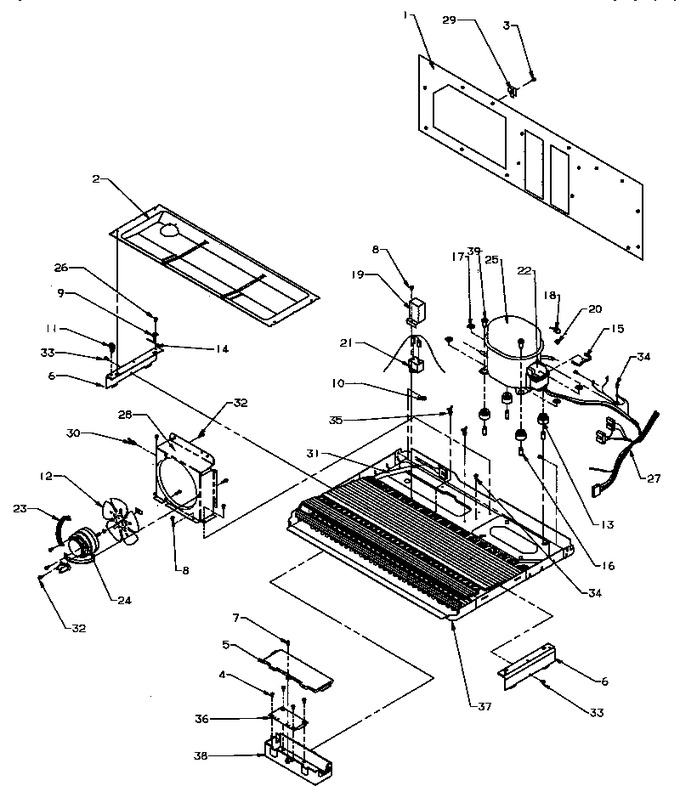

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10559903		Assy, Mach Comp Back		Appelez-nous	-
2	10507901		Pan, Drain		Appelez-nous	-
3	M0219704		Screw		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
5	10497801		Cover H.v. Box		Appelez-nous	-
6	10495701		Bracket, Drain Pan Mtg.		Appelez-nous	-
7	M0216517		Screw		Appelez-nous	-
8	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
9	M0585601		Tab, Wire Tie		Appelez-nous	-
10	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
11	M0118703		Clip, Guide		Appelez-nous	-
12	10518701		Blade, Fan		Appelez-nous	-
13	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
14	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
15	YB8358601		Bale Strap		Appelez-nous	-
16	B8384901		Pin, Comp. Mtg.		Appelez-nous	-
17	B8385001		Clip, Comp. Mtg		Appelez-nous	-
18	10377009		Overload		Appelez-nous	-
19	10266402		Shield, Capacitor		Appelez-nous	-
20	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
21	WP65889-4		Capacitor   (Replaces: C8931610)			Immediately	$ 61.14
22	10378301		Cover Terminal		Appelez-nous	-
23	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 10522101)			Immediately	$ 88.15
25	10628102		Compressor Aea1410axa		Appelez-nous	-
26	M0213529		Screw		Appelez-nous	-
27	10843901		Harness-mach		Appelez-nous	-
28	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
29	M0108001		Clamp, Tube		Appelez-nous	-
30	M0585403		Tie Wire		Appelez-nous	-
31	10851302		Insulation, Tube		Appelez-nous	-
32	M0223803		Screw		Appelez-nous	-
33	A4539601		Pop Rivet		Appelez-nous	-
34	M0253916		Screw		Appelez-nous	-
35	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
36	10461505		Cont, Adap. Defrost		Appelez-nous	-
37	10544104		Assy,cond/pan-e Ct		Appelez-nous	-
38	10495901		Box, H. V.		Appelez-nous	-
NI	10628501		Spring, Term Cover		Appelez-nous	-
