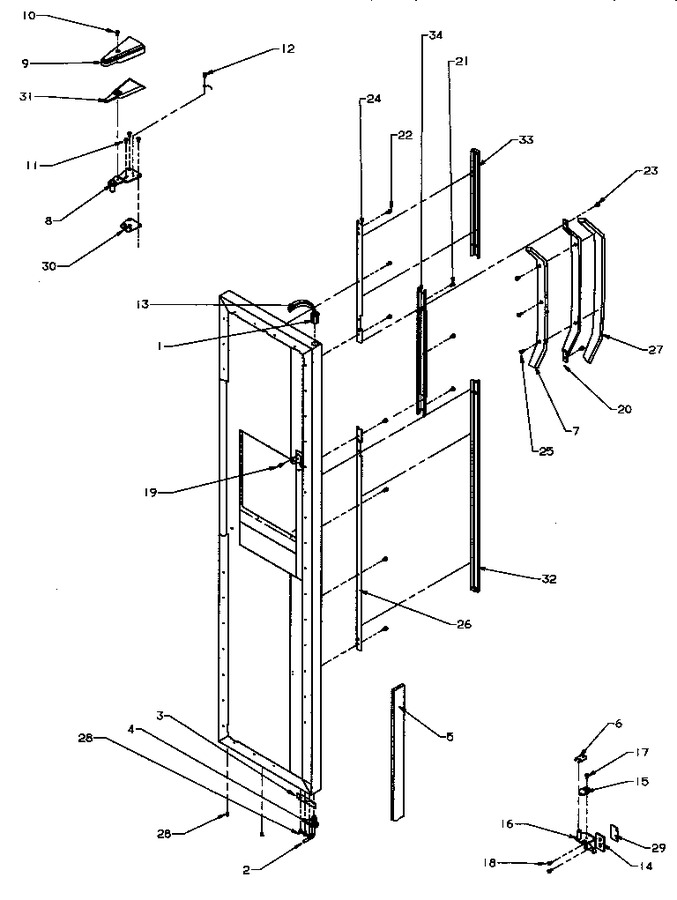

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
2	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
3	C8972402		Stop, Door		Appelez-nous	-
4	R0181181		Kit,dr Closure   (Replaces: D7751401)			Immediately	$ 7.55
5	C8974102		Trim, Door		Appelez-nous	-
6	B8387702		Shim, Door Closure		Appelez-nous	-
6	B8387701		Shim, Door Closure		Appelez-nous	-
7	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
8	10495803		Hinge, Top (e-ct)		Appelez-nous	-
9	10504008		Cover, Hinge (almond)		Appelez-nous	-
10	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
11	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
12	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
13	10164202		Harness Fz Door		Appelez-nous	-
14	10399502		Kit,btm Hinge Shim		Appelez-nous	-
14	10399501		Kit,btm Hinge Shim		Appelez-nous	-
15	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
16	10496104		Kit,hinge Lh Btm(b)		Appelez-nous	-
17	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
18	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
19	WP489399		Screw   (Replaces: M0232903)				$ 7.30
20	D7826603		Handle		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
22	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
23	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
24	D7793002		Retainer, Trim		Appelez-nous	-
25	M0215116		Screw		Appelez-nous	-
26	D7793102		Retainer, Trim		Appelez-nous	-
27	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
28	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
29	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
30	B8389001		Shim, Top Hinge		Appelez-nous	-
31	10126603		Foil, Hinge Cover		Appelez-nous	-
32	D7792705		Trim, Lwr Frz Door (l)		Appelez-nous	-
33	D7852105		Upper Trim Frz Dr (l)		Appelez-nous	-
34	D7854005		Trim Center Frz (l)		Appelez-nous	-
