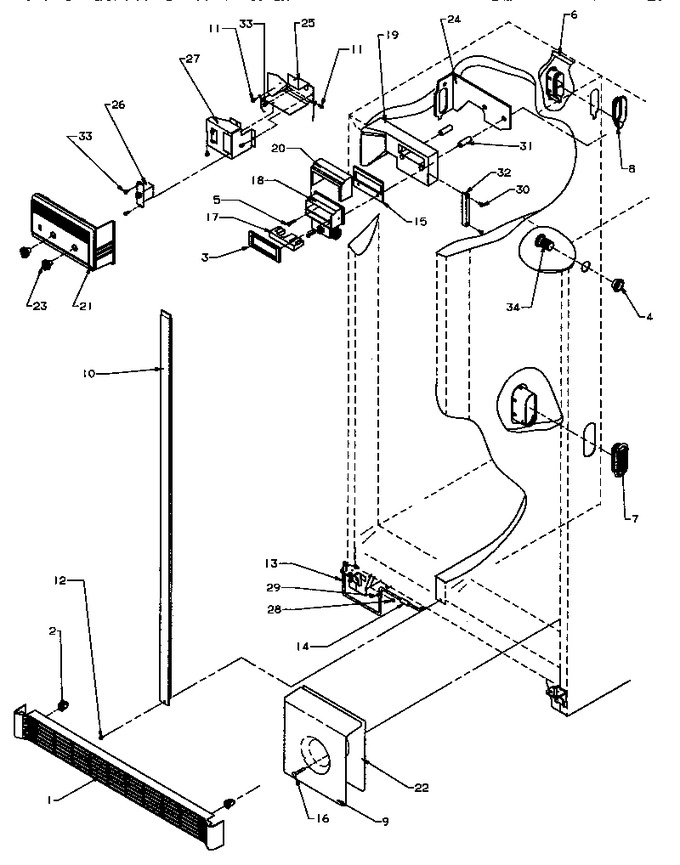

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470304 | Grille-toe, Almond |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | 10383201 | Gasket, Damper |
|
- | |||||
| 4 | A3187801 | Retainer |
|
- | |||||
| 5 | M0216539 | Screw |
|
- | |||||
| 6 | B5705320 | Tubing, Plastic (wtr Tank/do |
|
- | |||||
| 7 | D7785401 | Grille-rtn Air |
|
- | |||||
| 8 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 9 | D7879302 | Cover, Tank Insul. |
|
- | |||||
| 10 | Y00000000 | See Note Vertical Mullion, Almond -- (not Replaceable)(see Note) |
|
- | |||||
| 11 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 12 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 13 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 14 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 15 | B8345401 | Gasket, Damper |
|
- | |||||
| 16 | C6457701 | Clip K |
|
- | |||||
| 17 | C8902601 | Insert, Control |
|
- | |||||
| 18 | D7547411 | Control-damper |
|
- | |||||
| 19 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 20 | D7788201 | Insulation |
|
- | |||||
| 21 | D7790341 | Cover-control |
|
- | |||||
| 22 | D7793403 | Insulation Cut Tank |
|
- | |||||
| 23 | D7795822 | Knob, Control |
|
- | |||||
| 24 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 25 | D7822404 | Box, Bottom Control |
|
- | |||||
| 26 | R0161092 | Control-temp (Replaces: C3615024) |
|
$ 226.99 | |||||
| 27 | D7868606 | Box, Control Top |
|
- | |||||
| 28 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 29 | M0108001 | Clamp, Tube |
|
- | |||||
| 30 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 31 | A3044208 | Spacer Damper |
|
- | |||||
| 32 | C8977301 | Clamp |
|
- | |||||
| 33 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 34 | A3187702 | Tunnel, Air |
|
- |
