Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B8324801 Clip Ground Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
5 D7865910 Cover, Evap. Appelez-nous -
6 D7821140 Inner Fz Bach Pnt Appelez-nous -
7 10535701 Harness, Ref Liner Appelez-nous -
8 D7838302 Cover, Supply Air Appelez-nous -
9 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

10 A3127414 Ext. Fill Tube Appelez-nous -
11 10426801 Clip, Air Tunnel Appelez-nous -
12 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

13 M0322202 Tie Wire Appelez-nous -
14 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

15 C8976201 Clamp Appelez-nous -
16 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

17 10164806 Grille Control Appelez-nous -
18 10098801 Rivet Appelez-nous -
19 10527401 Clip, Evap Appelez-nous -
20 D7865812 Evap. Shield Appelez-nous -
21 D7850202 Drip Tray Pnt. Appelez-nous -
22 M0580003 Grommet Appelez-nous -
23 10623003 Clip, Evaporator Appelez-nous -
24 10629601 Block, Air Coil (left) Appelez-nous -
25 10629001 Block, Air Coil (right) Appelez-nous -
26 R0161087 Kit, Thermostat   (Replaces: 10544003) Special Order $ 128.76

27 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

28 WP12049801 Heater, Evap   (Replaces: 10428405) Special Order $ 149.50

29 R0170055 Assy,low Side(sxs 22) Special Order $ 322.79

30 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

31 A1047901 Shim Appelez-nous -
32 C8795501 Fan-evap Appelez-nous -
33 C8881302 Brkt-mtr Mt/up Appelez-nous -
34 10654202 Assy, Evap Fn Mtr Appelez-nous -
35 D7767706 Bracket-motor/shroud Appelez-nous -
36 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

37 M0580002 Grommet A Appelez-nous -
38 10164702 Control-air Appelez-nous -
39 A3189336 Gasket, Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

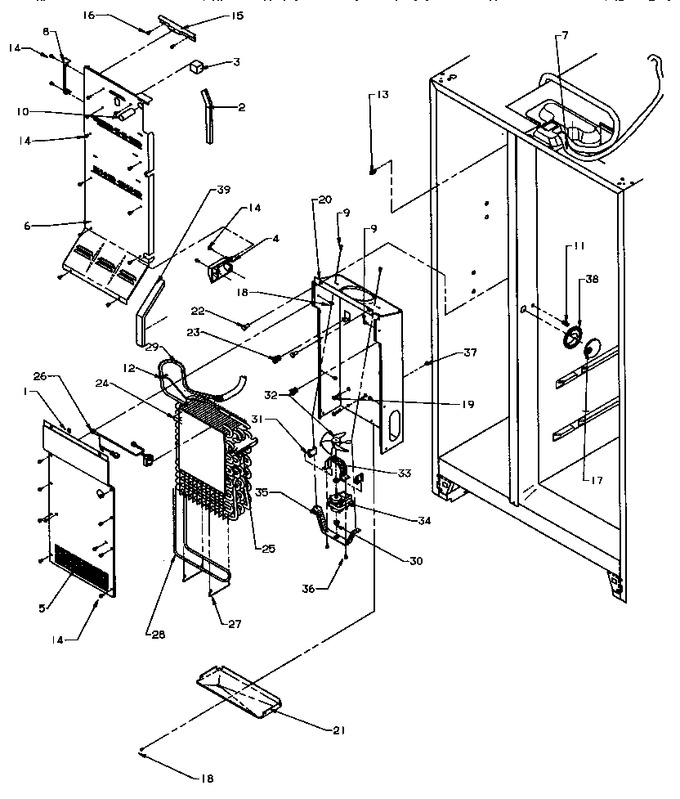

Diagram for SXD25QA3L (BOM: P1181320W L)
