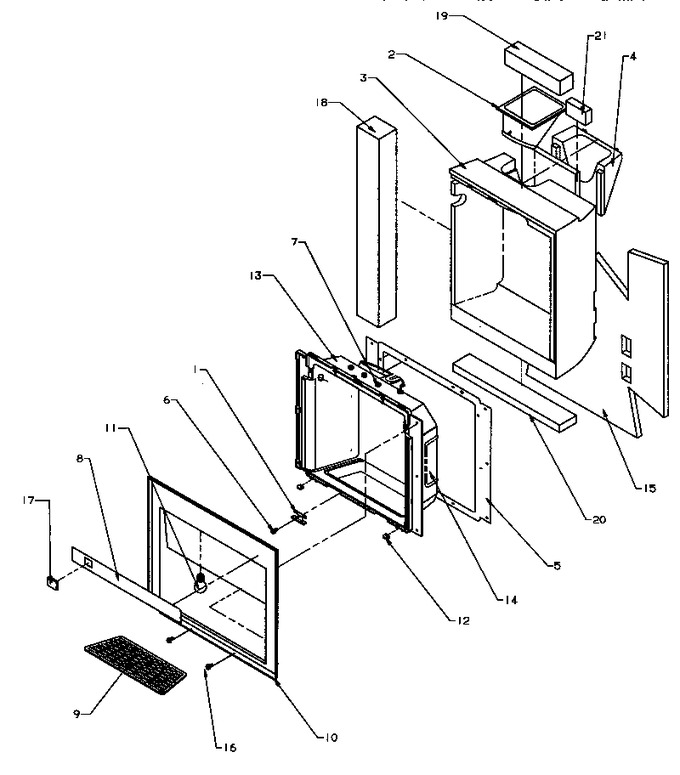

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	10504101		Chute, Ice		Appelez-nous	-
3	10506501		Insul., I/w Cavity		Appelez-nous	-
4	10504601		Insul., Ice Chute		Appelez-nous	-
5	D7791001		Gasket-cavity		Appelez-nous	-
6	M0216517		Screw		Appelez-nous	-
7	M0274701		Retainer, Ring		Appelez-nous	-
8	D7842222		Membrane Facade L		Appelez-nous	-
9	D7750605		Grille, Sump L		Appelez-nous	-
10	D7877525		Facade, Dispenser Al		Appelez-nous	-
11	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
12	B8390301		Clip, Facade		Appelez-nous	-
13	D7750021		Cavity, Dispenser		Appelez-nous	-
14	10176101		Heater-cavity		Appelez-nous	-
15	10220201		Insulation Batt		Appelez-nous	-
16	M0219640		Screw		Appelez-nous	-
17	10176301		Cap-silver Switch		Appelez-nous	-
18	10270907		Insul, Batt		Appelez-nous	-
19	B5629061		Insul., Batt		Appelez-nous	-
20	B5629062		Insul., Batt		Appelez-nous	-
21	B5629058		Insulation Batt		Appelez-nous	-
