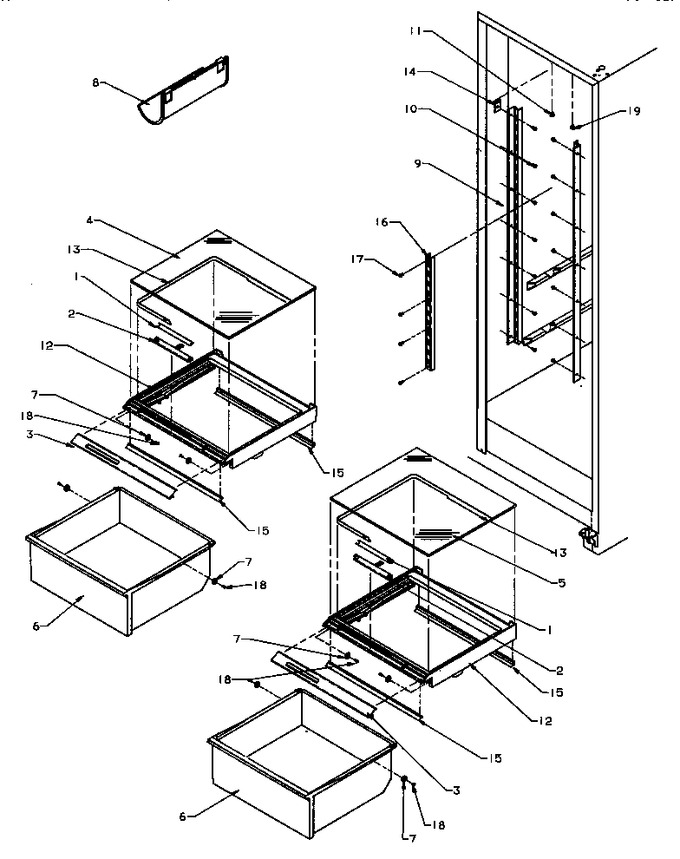

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10199910		Insert, Crisp Sl		Appelez-nous	-
2	10289908		Slide Crisper Control		Appelez-nous	-
3	10524301		Trim, Crisper Top Frt		Appelez-nous	-
4	10370027		Glass Shelf		Appelez-nous	-
5	10370030		Glass Shelf		Appelez-nous	-
6	10471812		Pan, Crisper		Appelez-nous	-
7	10481001		Roller, Pan				$ 10.99
8	10448901		Rack, Wine		Appelez-nous	-
9	D7789809		Ladder, Cantilever		Appelez-nous	-
9	D7789808		Ladder, Cantilever		Appelez-nous	-
10	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
11	M0580007		Grommet, Screw		Appelez-nous	-
12	10469609		Frame, Crisper		Appelez-nous	-
12	10469608		Frame, Crisper		Appelez-nous	-
13	10519302		Band, Crisper		Appelez-nous	-
14	C8992301		Bracket		Appelez-nous	-
15	D7718406		Seal, Meat Pan		Appelez-nous	-
15	10523401		Seal, Crisper Front		Appelez-nous	-
16	D7599003		Ladder, Center		Appelez-nous	-
17	M0230923		Screw		Appelez-nous	-
18	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
19	M0581001		Grommet, Screw		Appelez-nous	-
NI	10543710		Assy, Crisper Frame		Appelez-nous	-
NI	10543709		Ass`y, Crisper Frame		Appelez-nous	-
