SELECT A DIAGRAM

01 - Cover Sheet

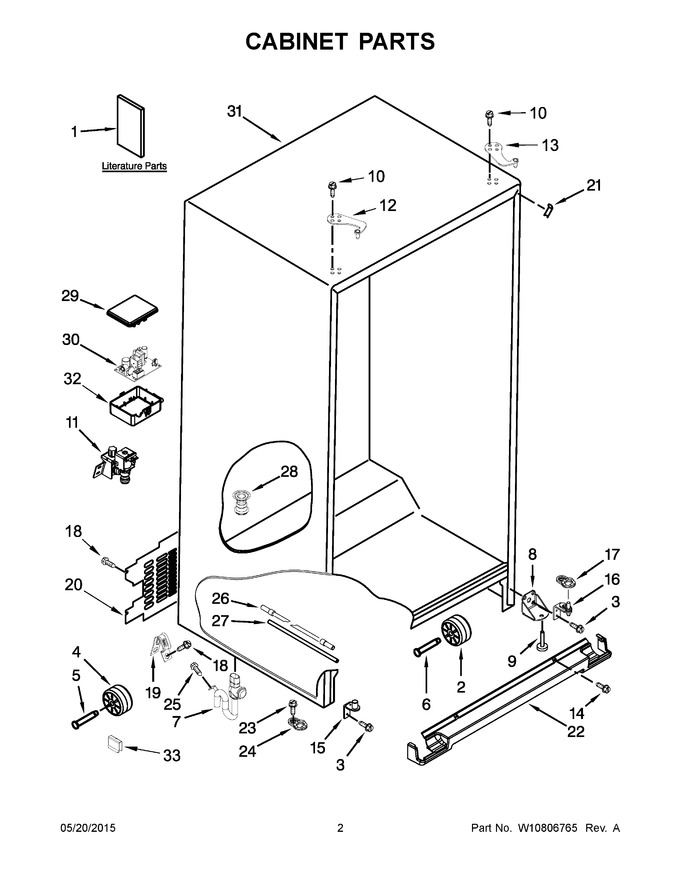

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10632884		Use & Care Guide		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 7.62
4	12477102		Roller			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 17.84
7	W11293072		Tube, Drain   (Replaces: W10379525)				$ 32.95
8	W11266052		Bracket, Foot   (Replaces: W10257186)				$ 63.15
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
10	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 69.80
11	WPW10238100		Valve, Inlet   (Replaces: W10498992)			Immediately	$ 200.52
12	W10673330		Hinge, Top (freezer) (white)		Appelez-nous	-
13	W11573587		Hinge, Top (refrigerator) (white)   (Replaces: W10611068)				$ 23.06
14	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 9.84
15	W11293373		Hinge, Bottom (freezer) (white)   (Replaces: W10249940)				$ 67.40
16	W11320488		Hinge, Bottom (refrigerator) (white)   (Replaces: W10666898)			Immediately	$ 65.40
17	W11311685		Closer, Door (refrigerator) (white)   (Replaces: W10412762)				$ 13.25
18	WPW10141645		Screw   (Replaces: W10141645)				$ 7.67
19	549193		Clamp, Power Cord				$ 13.39
20	W10257238		Cover, Unit   (Replaces: W10333887)				$ 98.13
21	12587703W		Filler, Wrapper (white)				$ 21.81
22	WPW10713160		Grille (white)   (Replaces: W10713160)				$ 131.08
23	WP489483		Screw   (Replaces: W10142234)				$ 10.87
24	W10876198		Closer, Door (freezer) (white)   (Replaces: W10247903)				$ 12.03
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 108.79
27	WPW10279884		Tube, Filter Outlet   (Replaces: W10279884)				$ 131.51
28	W10370680		Fitting, Drain				$ 36.03
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 81.10
30	W11035839		Control, Electronic   (Replaces: W10738538)			Immediately	$ 248.10
31	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 113.44
33	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.31
12A	W10901052		Hinge, Top (freezer) (black)   (Replaces: W10673329)				$ 72.99
12B	W11590581		Hinge, Top (freezer) (grey)   (Replaces: W10673327)				$ 23.06
13A	W11568758		Hinge, Top (refrigerator) (black)   (Replaces: W10611067)				$ 23.81
13B	W11409290		Hinge, Top (refrigerator) (grey)   (Replaces: W10611065)				$ 67.12
15A	W10249941		Hinge, Bottom (freezer) (black)		Appelez-nous	-
15B	W11293374		Hinge, Bottom (freezer) (grey)   (Replaces: W10249943)				$ 69.83
16A	W11311416		Hinge, Bottom (refrigerator) (black)   (Replaces: W10666897)				$ 67.60
16B	W11292872		Hinge, Bottom (refrigerator) (grey)   (Replaces: W10666895)				$ 68.66
17A	W11311686		Closer, Door (refrigerator) (black)   (Replaces: W10738914)				$ 13.35
17B	W11311687		Closer, Door (refrigerator) (grey)   (Replaces: W10738911)				$ 13.40
1A	W10678659		Service And Wiring Sheet		Appelez-nous	-
1B	W10678594		Energy Guide		Appelez-nous	-
21A	67003485		Filler, Wrapper (black)   (Replaces: 12587703B)			Immediately	$ 21.09
21B	WP12587703AP		Filler, Wrapper (grey)   (Replaces: 12587703AP)				$ 7.69
22A	WPW10713158		Grille (black)   (Replaces: W10713158)				$ 93.73
22B	WPW10713153		Grille (grey)   (Replaces: W10713153)			Immediately	$ 129.07
24A	W10770895		Closer, Door (freezer) (black)   (Replaces: W10257198)				$ 15.03
24B	W10876191		Closer, Door (freezer) (grey)   (Replaces: W10257200)				$ 17.12

    View Diagram in Separate Window       Print Part List
