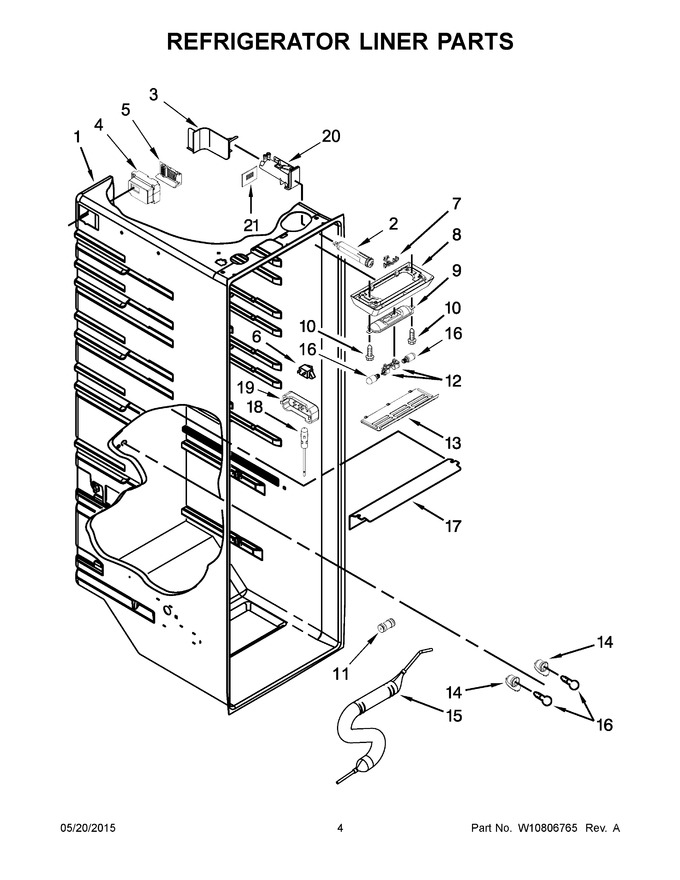

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10569758 | Filter, Water |
|
$ 0.03 | |||||
| 3 | W11501035 | Cover, Water Filter (Replaces: W10300482) |
|
$ 15.70 | |||||
| 4 | W11164593 | Assembly, Air Diffuser (Replaces: W10750143) |
|
Immediately | $ 122.07 | ||||
| 5 | WPW10457601 | Cover, Air Diffuser (Replaces: W10457601) |
|
$ 157.21 | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 7 | W10253300 | Assembly, Top Light Wire |
|
- | |||||
| 8 | W10280178 | Trim, Light |
|
- | |||||
| 9 | 2223680 | Shield, Heat |
|
$ 93.52 | |||||
| 10 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 9.05 | |||||
| 11 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 12 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 13 | W10280420 | Lens, Top Light |
|
$ 107.14 | |||||
| 14 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 15 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 88.91 | |||||
| 16 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 29.29 | ||||
| 17 | WPW10269099 | Lens, Light (Replaces: W10269099) |
|
$ 128.01 | |||||
| 18 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 19 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 20 | WPW10394053 | Housing, Water Filter (Replaces: W10394053) |
|
Immediately | $ 139.80 | ||||
| 21 | WPW10457603 | Cover, Air Filter (Replaces: W10457603) |
|
$ 82.14 |
