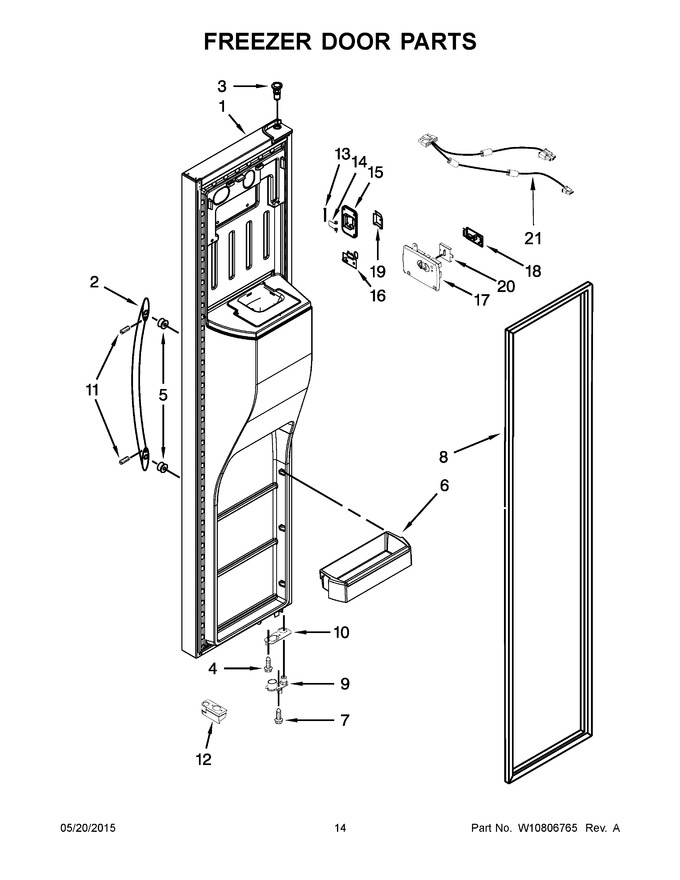

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10701907 | Door, Freezer (includes Item 8 & Dispenser Front Parts) (white) |
|
- | |||||
| 2 | W10848410 | Handle (white) (Replaces: W10713677) |
|
$ 203.72 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10430639 | Bin, Door (Replaces: W10430639) |
|
Immediately | $ 109.19 | ||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 347.07 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.85 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 23.46 | |||||
| 13 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 16 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 17 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 20 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 21 | W10411699 | Harness, Emitter And Receiver |
|
$ 152.79 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 1A | W10701908 | Door, Freezer (includes Item 8 & Dispenser Front Parts) (black) |
|
- | |||||
| 1B | W10701909 | Door, Freezer (includes Item 8 & Dispenser Front Parts) (stainless) |
|
- | |||||
| 2A | W10805245 | Handle (black) (Replaces: W10713678) |
|
$ 227.50 | |||||
| 2B | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 188.82 | ||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 321.05 | |||||
| 8B | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 |
