Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10463648 Shelf, Snack Pan   (Replaces: W10463648) Special Order $ 331.23

2 W10309636 Trim, Handle   (Replaces: W10281628) Appelez-nous -
3 W11746089 Slide, Humidity   (Replaces: W10282883) Special Order $ 30.50

4 W11746089 Housing, Humidity   (Replaces: W10282880) Special Order $ 30.50

5 WPW10463650 Assembly, Cover   (Replaces: W10463650) Special Order $ 344.38

6 WPW10256770 Pan, Snack   (Replaces: W10256770) Special Order $ 164.87

7 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 15.74

8 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 36.54

9 WPW10278653 Pan, Crisper   (Replaces: W10278653) Special Order $ 173.33

10 WPW10256774 Pan, Meat   (Replaces: W10256774) In-Stock Immediately $ 170.34

11 W10309635 Trim, Handle Appelez-nous -
12 W10309636 Trim, Handle Appelez-nous -
13 WPW10701979 Shelf Assembly   (Replaces: W10701979) Special Order $ 210.06

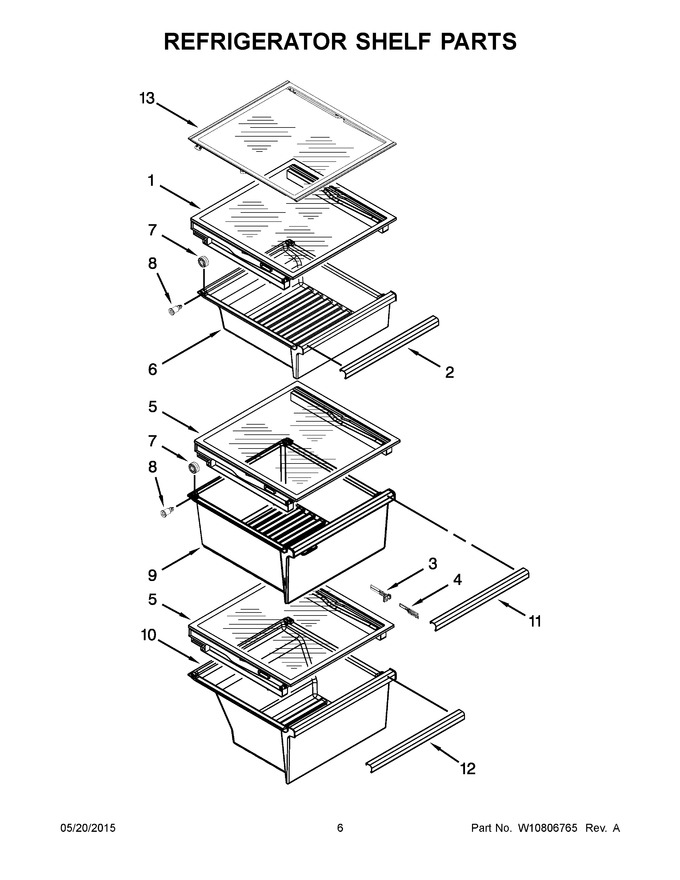

    View Diagram in Separate Window     Print Icon   Print Part List
