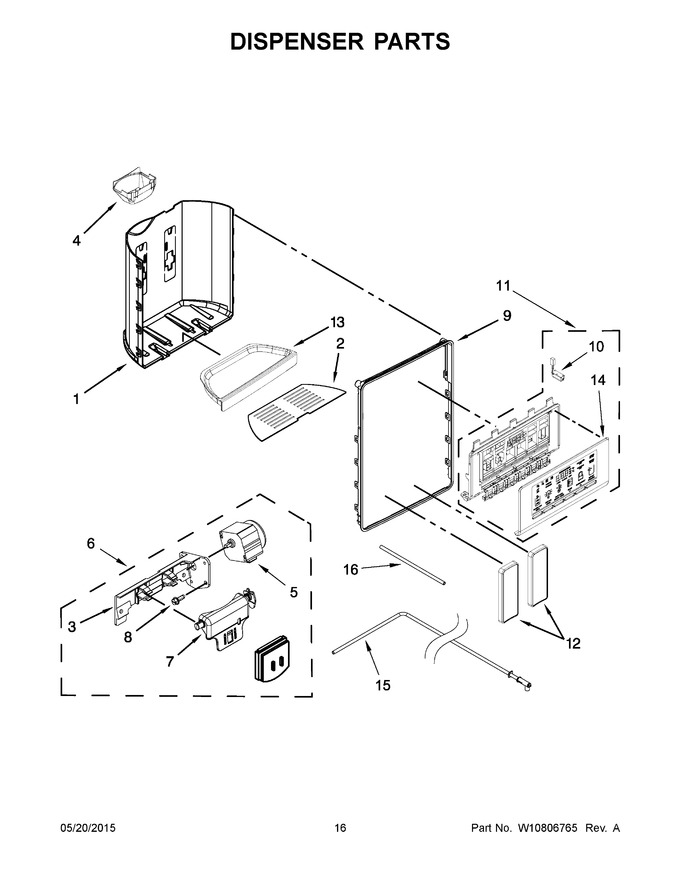

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W10838126		Assembly, Separator   (Replaces: W10493171)				$ 164.33
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276265		Ring, Trim (white)				$ 63.74
10	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
11	W10811881		User Interface Assembly   (Replaces: W10744624)		Appelez-nous	-
12	W10370583		Pad, Ice And Water (white)		Appelez-nous	-
13	W10254258		Tray, Housing (white)				$ 99.03
14	W10458867		Cover, Front (white)				$ 302.83
15	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 132.74
16	W11619800		Tube, Water   (Replaces: W10238091)				$ 90.70
12A	W11812026		Pad, Ice And Water (black)   (Replaces: W10370577)				$ 63.03
12B	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 70.82
13A	W10254259		Tray, Housing (black)				$ 71.51
13B	W10276225		Tray, Housing (satina)				$ 74.06
9A	W10448931		Ring, Trim (chromium Frost)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
