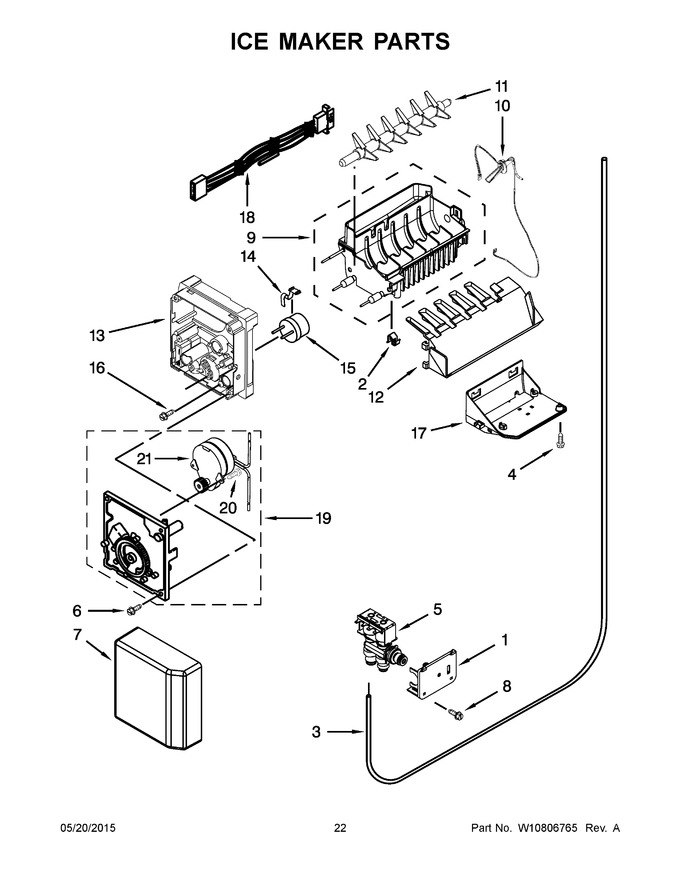

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 80.75 | |||||
| 2 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 3 | WPW10238092 | Tube, Water (Replaces: W10238092) |
|
Immediately | $ 132.24 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 5 | WPW10341320 | Assembly, Water Valve (Replaces: W10341320) |
|
Immediately | $ 276.86 | ||||
| 6 | W10001240 | Screw |
|
$ 9.22 | |||||
| 7 | W10251088 | Cover, Icemaker |
|
$ 43.87 | |||||
| 8 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 9 | W10251081 | Assembly, Mold And Heater (also Order #542638) |
|
$ 160.59 | |||||
| 10 | W10347034 | Assembly, Fill Tube |
|
$ 84.69 | |||||
| 11 | W10318644 | Ejector |
|
$ 27.92 | |||||
| 12 | W10747731 | Stripper, Ice |
|
$ 94.79 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP2321258 | Thermostat (also Order #542369) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 16 | W10001280 | Screw |
|
- | |||||
| 17 | W10747726 | Bracket, Mounting |
|
- | |||||
| 18 | W10242384 | Harness, Wiring (Replaces: W10242365) |
|
$ 131.63 | |||||
| 19 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 20 | 489136 | Screw |
|
$ 10.80 | |||||
| 21 | N/P | Motor (not Serviced, Order #19) |
|
- | |||||
| 100 | WPW10251076 | Complete Icemaker Assembly (Replaces: W10122576) |
|
Immediately | $ 238.23 |
