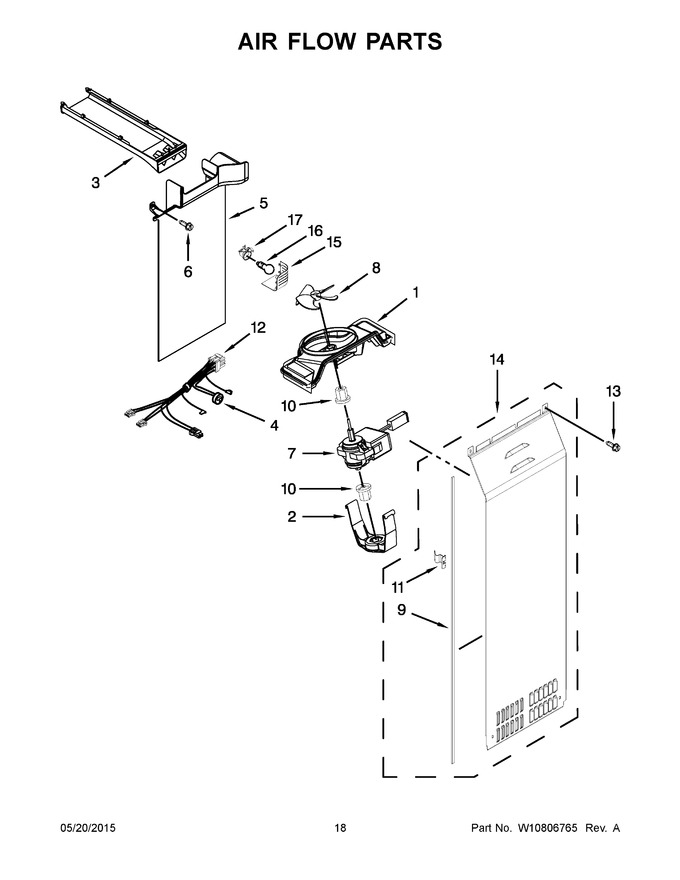

10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Fan Scroll   (Replaces: W10251462)				$ 29.24
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 151.69
3	W10515038		Duct, Upper Air   (Replaces: W10550199)				$ 347.25
4	N/P		Bi-metal Defrost (not Serviced)		Appelez-nous	-
5	W10260378		Duct, Freezer Air		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 7.75
7	W11396715		Motor, Fan   (Replaces: W10556724)				$ 208.52
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.17
11	W11232019		Clip, Evaporator Cover   (Replaces: W10369602)			Immediately	$ 10.85
12	W11449066		Assembly, Evaporator Fan Wire (includes Bi-metal Defrost)   (Replaces: W10679946)				$ 95.53
13	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.19
14	WPW10388268		Cover, Evaporator   (Replaces: W10388268)				$ 244.21
15	W10260382		Cover, Light				$ 76.74
16	W11338583		Lamp, Led   (Replaces: W10745744)			Immediately	$ 102.10
17	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
