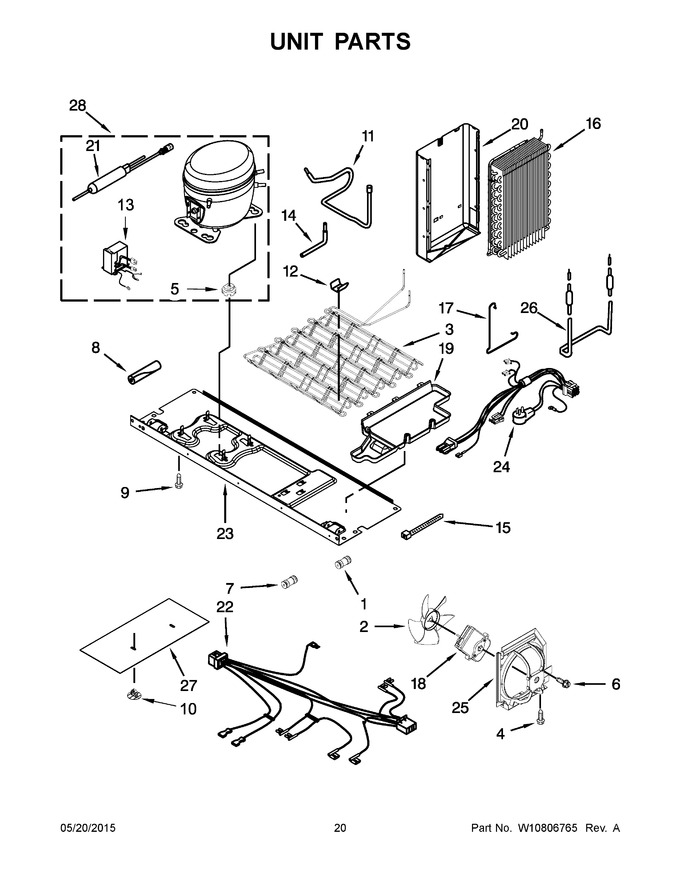

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | W11760073 | Condenser (Replaces: W10276899) |
|
$ 160.76 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 14.49 | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.06 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 66.26 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 9 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10296661 | Clip, Bottom Cover |
|
$ 16.93 | |||||
| 11 | W11311688 | Tube, Suction (Replaces: W10219381) |
|
$ 84.45 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 13 | W11087200 | Assembly, Inverter Box (Replaces: W10710090) |
|
Immediately | $ 228.40 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 7.72 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 339.85 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10527155) |
|
Immediately | $ 185.05 | ||||
| 19 | W10703218 | Tray, Evaporator |
|
$ 192.66 | |||||
| 20 | W10274575 | Shield, Heat |
|
$ 96.68 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 22 | W11700341 | Assembly, Unit Wire (Replaces: W10679948) |
|
$ 97.21 | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | WPW10242407 | Cord, Power (Replaces: W10242407) |
|
$ 77.11 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 80.76 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 159.36 | ||||
| 27 | W10278140 | Cover, Condenser (bottom) |
|
$ 89.57 | |||||
| 28 | W10779331 | Compressor (Replaces: W10695094) |
|
$ 994.62 | |||||
| NI | N/P | Refrigerant Charge 5.3 Oz. (r-134a) |
|
- |
